Db5060 Steel Flexible Die Making Machine/Photo Etching Machine for Customized Needs

Db5060 Steel Flexible Die Making Machine/Photo Etching Machine for Customized Needs

Description
Model NO.: DB5060 Etching Type: One-Side Spray
Precision: Precision Condition: New
Etching Size: 500*600mm Heating Tube: Titanium Material
Control System: Spray, Temperature, Speed, Pressure, Network Filte Power: 7.5kw/380V
Service: Free Training Customized: Is Avaible
Out Size: 1900*1500*1300mm Transport Package: Wooden Package
Specification: CE Trademark: Golden Eagle
Origin: Beijing, China (Mainland) HS Code: 84862090
Supply Ability: 35sets/Month After-sales Service: 1year. After 1year,Once Some Components Are Broke
Warranty: 1year. After 1year,Once Some Components Are Broke Type: Photochemical Etching Machine
Object: Metal Usage: Corrosion & Hollowed-out
Certification: CE Samples: US$ 500/Piece 1 Piece(Min.Order) | Request Sample

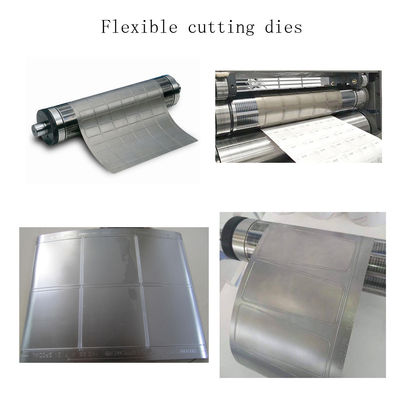

DB5060 Steel Flexible Dies Etching Machine   cutting dies etching machine

Product Parameters



Power: 7.5KW/380V
Working Size: 500*600mm
Etching type: Vertical spraying
Working Temp: 40~55 degrees
Heat System: Titanium, 3KW
Cool System: Titanium Pipe
Motor power: 4KW/380V
Machine Size: 1950*1350*1550mm
Weight About; 550kgs

Product Description

Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished


Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.


Detailed Photos

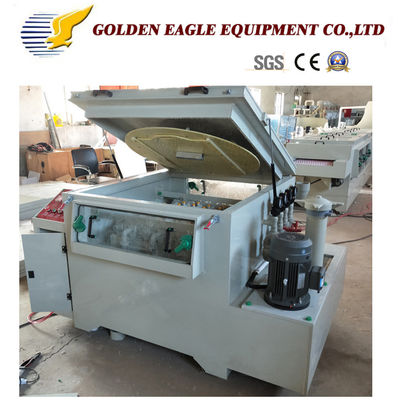

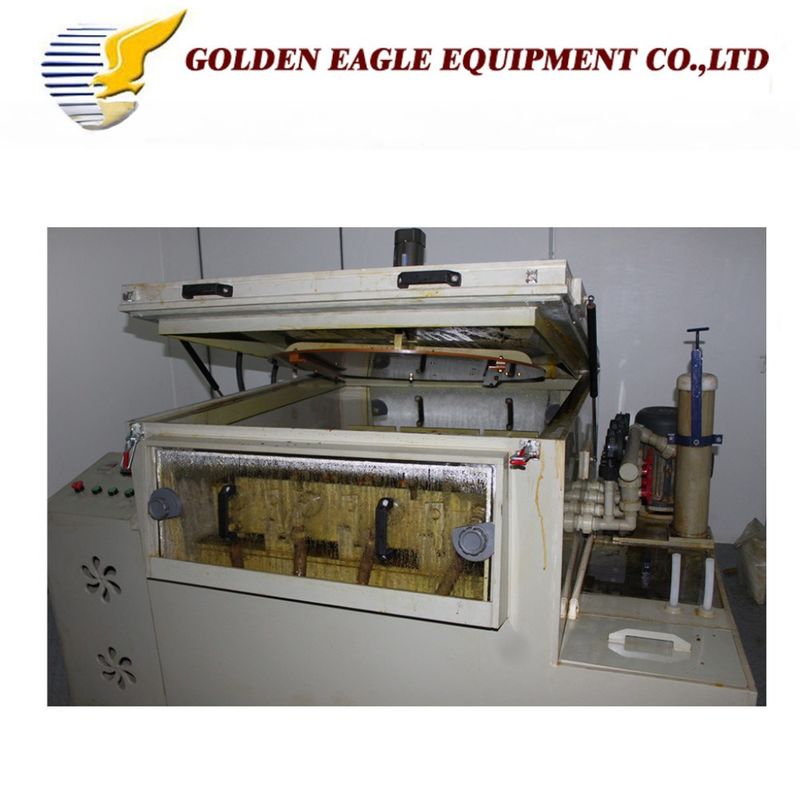

Db5060 Steel Flexible Die Making Machine/Photo Etching Machine
Db5060 Steel Flexible Die Making Machine/Photo Etching Machine
Db5060 Steel Flexible Die Making Machine/Photo Etching Machine
Db5060 Steel Flexible Die Making Machine/Photo Etching Machine
Db5060 Steel Flexible Die Making Machine/Photo Etching Machine
Db5060 Steel Flexible Die Making Machine/Photo Etching Machine
Db5060 Steel Flexible Die Making Machine/Photo Etching Machine Db5060 Steel Flexible Die Making Machine/Photo Etching Machine
Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.


Packaging & Shipping


Wooden pallet/wooden box packing  Multi-layer protection to ensure no scratches

All cargo loading by us,Reasonable space arrangement, saving shipping cost
