OEM Db5060 Etching Machine For Magnetic Dies / Etching Machine

OEM Db5060 Etching Machine For Magnetic Dies / Etching Machine

Description
Model NO.: DB5060 Etching Type: One-Side Spray
Precision: Precision Condition: New
Working Size: 500*600mm Accuracy: +/- 0.02mm
Machine Size: 1850*1500*1550mm Application: Flexible Die Can Cut Paper, Sticker, Film Etc.
Control: Control Panel Or PLC Current: AC
Laser Type: Chemical Acid Etching Package: Wooden Packaging
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: GOLDEN EAGLE Origin: China
HS Code: 84862090 Supply Ability: 25sets/Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 1year. After 1year,Once Some Components Are Broke
Type: Photochemical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE

Rotary Flexible Dies Making Machine / Magnetic Dies Etching Machine   DB5060 Steel Flexible Dies Etching Machine
Product Parameters



Power: 7.5KW/380V
Working Size: 500*600mm
Etching type: Vertical spraying
Working Temp: 40~55 degrees
Heat System: Titanium, 3KW
Cool System: Titanium Pipe
Motor power: 4KW/380V
Machine Size: 1950*1350*1550mm
Weight About; 550kgs

Product Description

Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished


Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.


Detailed Photos

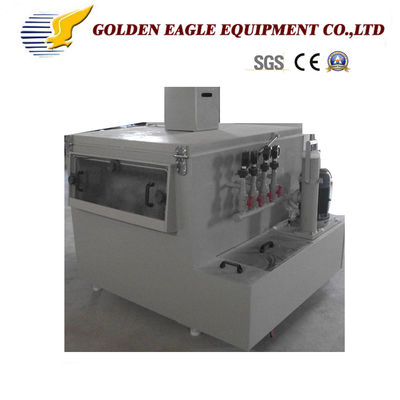

Db5060 Etching Machine for Magnetic Dies/Etching Machine

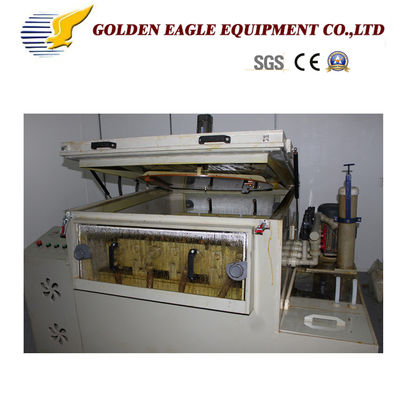

Db5060 Etching Machine for Magnetic Dies/Etching Machine

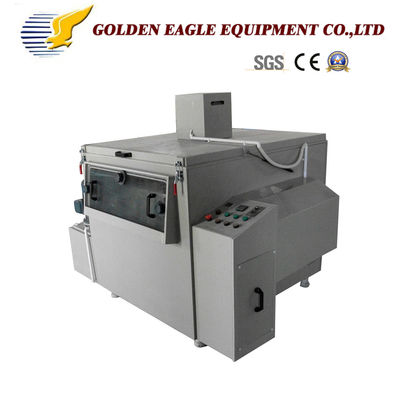

Db5060 Etching Machine for Magnetic Dies/Etching Machine

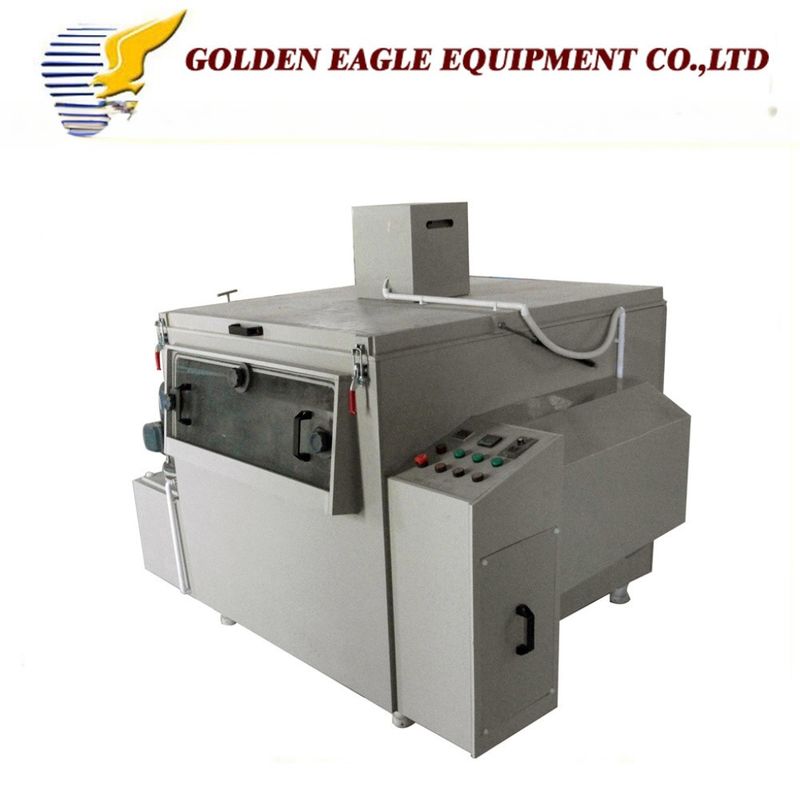

Db5060 Etching Machine for Magnetic Dies/Etching Machine

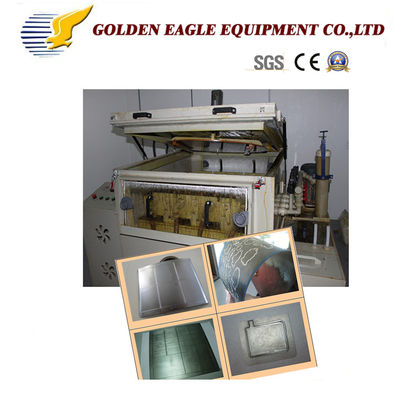

Db5060 Etching Machine for Magnetic Dies/Etching Machine

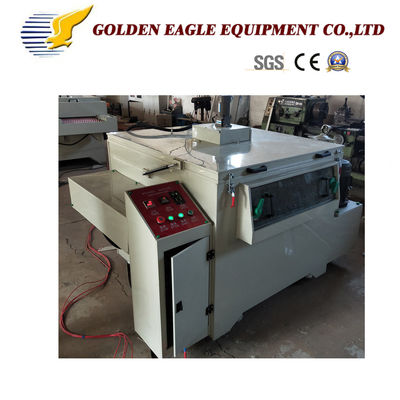

Db5060 Etching Machine for Magnetic Dies/Etching Machine
Db5060 Etching Machine for Magnetic Dies/Etching Machine Db5060 Etching Machine for Magnetic Dies/Etching Machine
Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.


Packaging & Shipping


Wooden pallet/wooden box packing  Multi-layer protection to ensure no scratches

All cargo loading by us,Reasonable space arrangement, saving shipping cost

Db5060 Etching Machine for Magnetic Dies/Etching Machine
