Steel Flexible Dies Making dB5060 Flexible Dies Etching Machine with 7.5kw/380V Power

Steel Flexible Dies Making dB5060 Flexible Dies Etching Machine with 7.5kw/380V Power

Description
Model NO.: DB5060 Object: Metal
Usage: Corrosion & Hollowed-out Etching Type: Vertical Spraying
Model: DB5060 Power: 7.5kw/380V
Working Size: 500*600mm Control System: Heat & Cooling & Temperature & Pressure
Working Temp: 40~55 Degrees Heat System: Titanium, 3kw
Cool System: Cool System Motor Power: 4kw/380V
Weight About: 550kgs Transport Package: Standard Export Wooden Case
Specification: CE Trademark: GOLDEN EAGLE
Origin: China HS Code: 84862090
Supply Ability: 25sets/Month Package Size: 200.00cm * 140.00cm * 160.00cm
Package Gross Weight: 500.000kg After-sales Service: 1year. After 1year,Once Some Components Are Broke
Warranty: 1year. After 1year,Once Some Components Are Broke Type: Photochemical Etching Machine
Samples: US$ 500/Piece 1 Piece(Min.Order) | Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

DB5060 Steel Flexible Dies Etching Machine
Product Parameters



Power: 7.5KW/380V
Working Size: 500*600mm
Etching type: Vertical spraying
Working Temp: 40~55 degrees
Heat System: Titanium, 3KW
Cool System: Titanium Pipe
Motor power: 4KW/380V
Machine Size: 1950*1350*1550mm
Weight About; 550kgs

Product Description

Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished


Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.


Detailed Photos

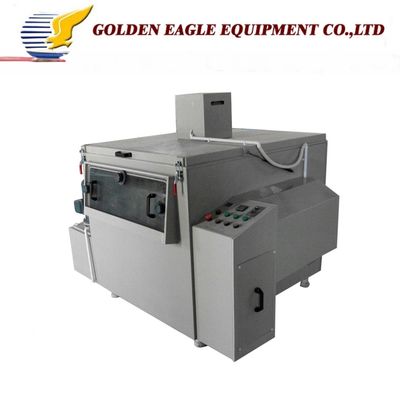

dB5060 Flexible Dies Etching Machine Steel Flexible Dies Making Machine

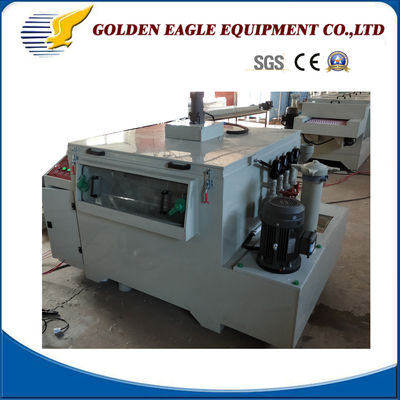

dB5060 Flexible Dies Etching Machine Steel Flexible Dies Making Machine

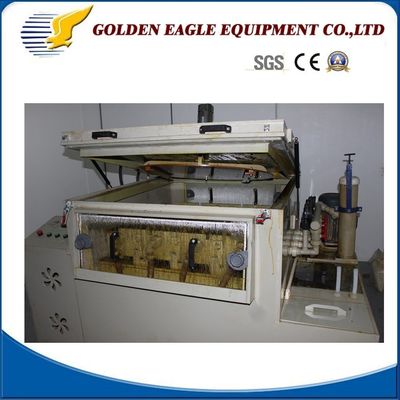

dB5060 Flexible Dies Etching Machine Steel Flexible Dies Making Machine

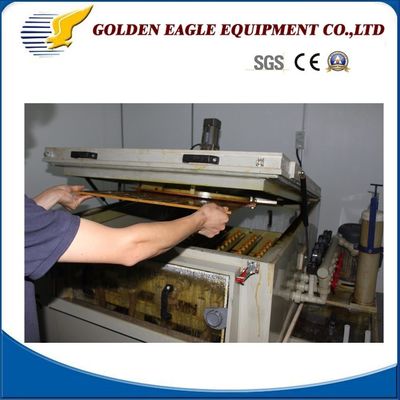

dB5060 Flexible Dies Etching Machine Steel Flexible Dies Making Machine

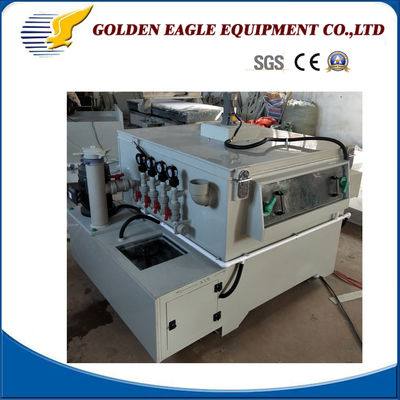

dB5060 Flexible Dies Etching Machine Steel Flexible Dies Making Machine

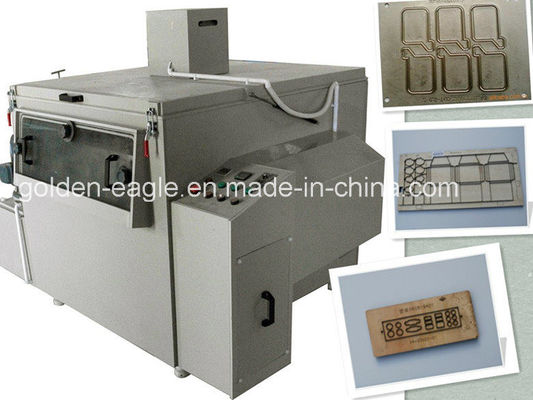

dB5060 Flexible Dies Etching Machine Steel Flexible Dies Making Machine
dB5060 Flexible Dies Etching Machine Steel Flexible Dies Making Machine dB5060 Flexible Dies Etching Machine Steel Flexible Dies Making Machine
Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.


Packaging & Shipping


Wooden pallet/wooden box packing  Multi-layer protection to ensure no scratches

All cargo loading by us,Reasonable space arrangement, saving shipping cost
