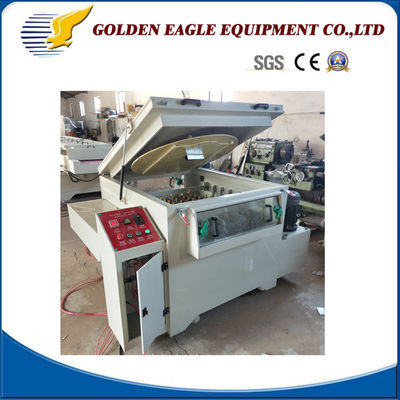

Precision Cutting Dies Making Machine / Etching Machine Db5060

Certification
China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

Precision Cutting Dies Making Machine / Etching Machine Db5060

Precision Cutting Dies Making Machine / Etching Machine Db5060

Description
Model NO.: DB5060 Etching Type: Vertical Spraying
Precision: Precision Condition: New
Model: DB5060 Working Size: 500*600mm
Control System: Heat & Cooling & Temperature & Pressure Power: 7.5kw/380V
Working Temp: 40~55 Degrees Heat System: Titanium, 3kw
Cool Syste: Titanium Pipe Machine Size: 1950*1350*1550mm
Weight About: 550kgs Transport Package: Standard Export Wooden Case
Specification: CE Trademark: GOLDEN EAGLE
Origin: China HS Code: 84862090
Supply Ability: 25sets/Month After-sales Service: After 1year,Once Some Components Are Broke
Warranty: After 1year,Once Some Components Are Broke Type: Photochemical Etching Machine
Object: Metal Usage: Marking & Lettering, Corrosion & Hollowed-out
Certification: CE

DB5060 Steel Flexible Dies Etching Machine

DB5060 Photo Etching Machine for flexible dies

DB5060 Steel Flexible Dies Etching Machine
Product Parameters



Power: 7.5KW/380V
Working Size: 500*600mm
Etching type: Vertical spraying
Working Temp: 40~55 degrees
Heat System: Titanium, 3KW
Cool System: Titanium Pipe
Motor power: 4KW/380V
Machine Size: 1950*1350*1550mm
Weight About; 550kgs

Product Description

Control system: Temperature, Speed, Pressure, Network Filter


Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished

Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.

Detailed Photos

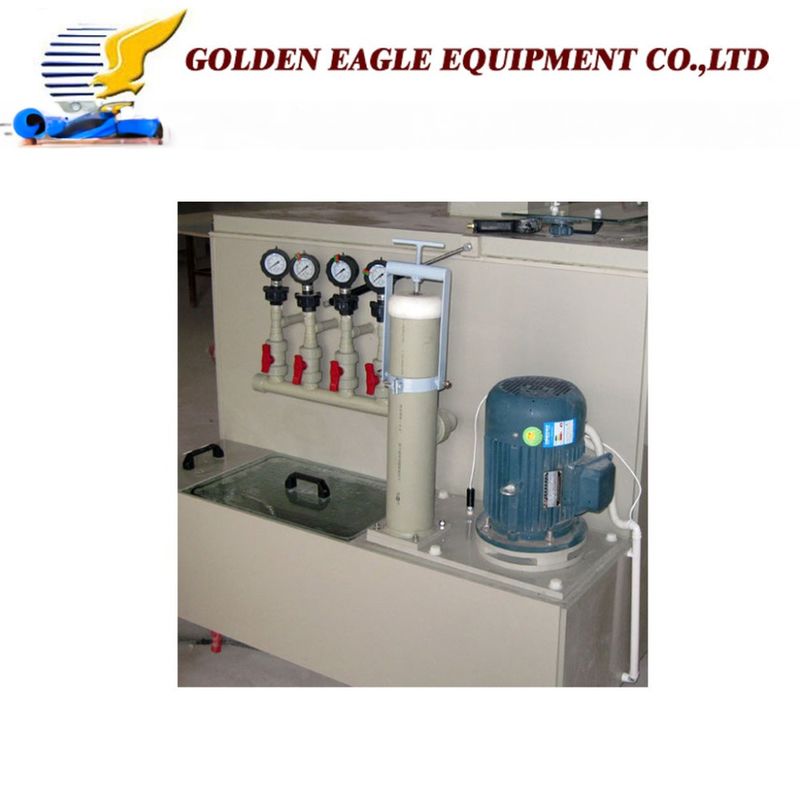

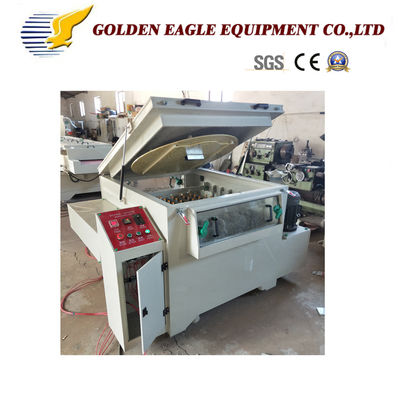

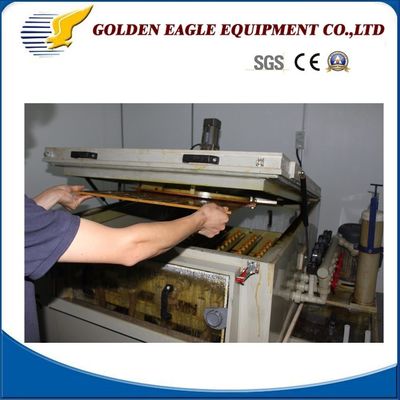

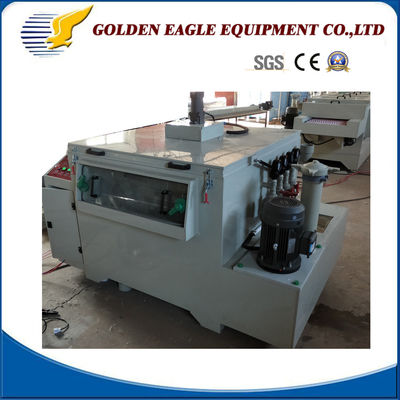

Db5060 Cutting Dies Making Machine/Etching Machine
Db5060 Cutting Dies Making Machine/Etching Machine
Db5060 Cutting Dies Making Machine/Etching Machine
Db5060 Cutting Dies Making Machine/Etching Machine
Db5060 Cutting Dies Making Machine/Etching Machine
Db5060 Cutting Dies Making Machine/Etching Machine
Packaging & Shipping



Db5060 Cutting Dies Making Machine/Etching Machine
Db5060 Cutting Dies Making Machine/Etching Machine
