Steel Flexible Dies Etching Machine With One Side Spray Etching Type Material

Steel Flexible Dies Etching Machine With One Side Spray Etching Type Material

Description
Model NO.: GE-DB5060 Etching Type: One-Side Spray
Precision: Precision Condition: New
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: GOLDEN EAGLE Origin: China
HS Code: 8486209000 Supply Ability: 25sets/Month
After-sales Service: After 1year,Once Some Components Are Broke Warranty: After 1year,Once Some Components Are Broke
Type: Photochemical Etching Machine Object: Metal
Usage: Marking & Lettering, Corrosion & Hollowed-out, Mould Certification: CE
Samples: US$ 500/Piece 1 Piece(Min.Order) | Request Sample


DB5060 Steel Flexible Dies Etching Machine
Product Parameters



Power: 7.5KW/380V
Working Size: 500*600mm
Etching type: Vertical spraying
Working Temp: 40~55 degrees
Heat System: Titanium, 3KW
Cool System: Titanium Pipe
Motor power: 4KW/380V
Machine Size: 1950*1350*1550mm
Weight About; 550kgs

Product Description

Control system: Temperature, Speed, Pressure, Network Filter


Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished

Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.

Detailed Photos

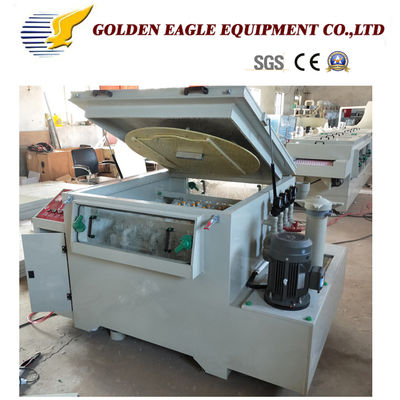

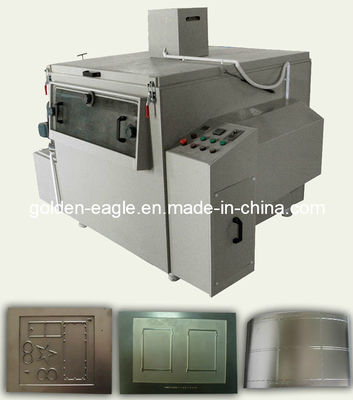

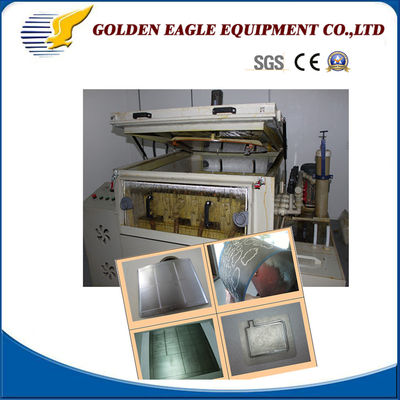

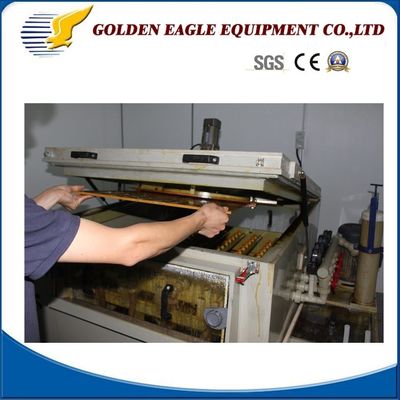

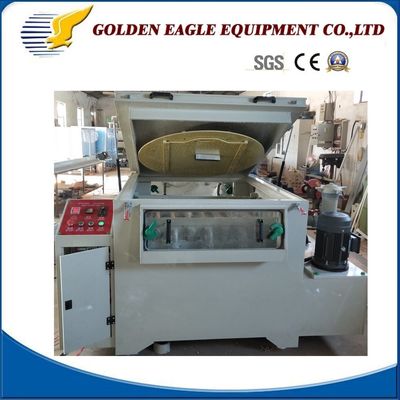

Steel Flexible Dies Etching Machine
Steel Flexible Dies Etching Machine
Steel Flexible Dies Etching Machine
Steel Flexible Dies Etching Machine
Steel Flexible Dies Etching Machine
Steel Flexible Dies Etching Machine
Packaging & Shipping



Steel Flexible Dies Etching Machine Steel Flexible Dies Etching Machine
