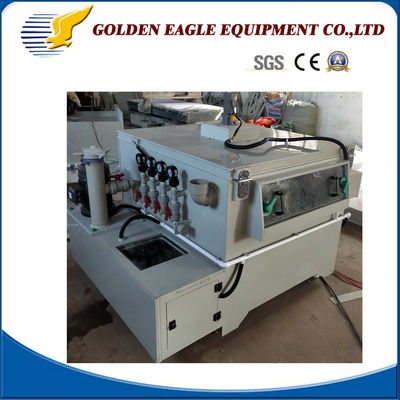

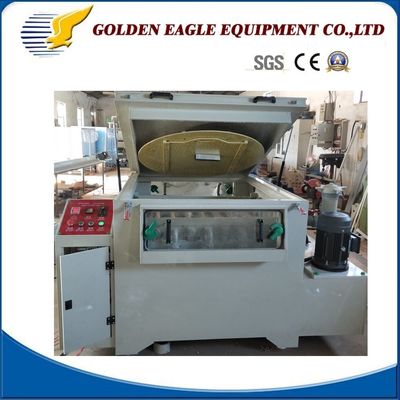

Corrosion Hollowed Out Etching Type Vertical Spray Etching Machine With Etching Type

Corrosion Hollowed Out Etching Type Vertical Spray Etching Machine With Etching Type

Description
Model NO.: GE-DB5060 Etching Type: Vertical Spray Etching
Precision: High Precision Condition: New
Working Size: 500*600mm Accuracy: +/- 0.02mm
Machine Size: 1850*1500*1550mm Application: Flexible Die Can Cut Paper, Sticker, Film Etc.
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: GOLDEN EAGLE Origin: China
HS Code: 8486209000 Supply Ability: 25sets/Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 1year. After 1year,Once Some Components Are Broke
Type: Electrical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE
Samples: US$ 500/Piece 1 Piece(Min.Order) | Request Sample

DB5060 Flexible Rotary Dies Etching Machine


Product Parameters



Power: 7.5KW/380V
Working Size: 500*600mm
Etching type: Vertical spraying
Working Temp: 40~55 degrees
Heat System: Titanium, 3KW
Cool System: Titanium Pipe
Motor power: 4KW/380V
Machine Size: 1950*1350*1550mm
Weight About; 550kgs

Product Description

Control system: Temperature, Speed, Pressure, Network Filter


Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished

Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.

Detailed Photos



Best Flexible Rotary Dies Etching Machine From China
Best Flexible Rotary Dies Etching Machine From China
Best Flexible Rotary Dies Etching Machine From China
Best Flexible Rotary Dies Etching Machine From China
Best Flexible Rotary Dies Etching Machine From China
Best Flexible Rotary Dies Etching Machine From China
Packaging & Shipping



Best Flexible Rotary Dies Etching Machine From China
Best Flexible Rotary Dies Etching Machine From China
Best Flexible Rotary Dies Etching Machine From China
Best Flexible Rotary Dies Etching Machine From China
