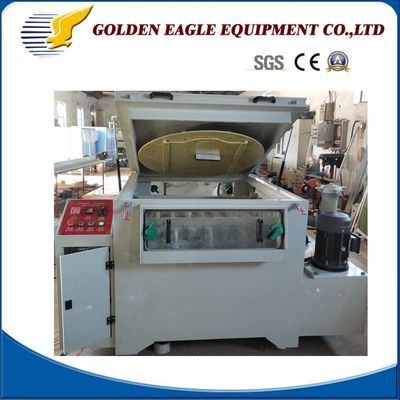

Cut Paper Flexible Dies Etching Machine One-Side Spray Type 1 Year After-Sales Service

Large Image : Cut Paper Flexible Dies Etching Machine One-Side Spray Type 1 Year After-Sales Service

Product Details:

Contact Now

Cut Paper Flexible Dies Etching Machine One-Side Spray Type 1 Year After-Sales Service

Description

Model NO.:	GE-DB5060	Etching Type:	One-Side Spray
Precision:	Precision	Condition:	New
Model:	Ge-Db5060	Control:	Control Panle Or PLC
Current:	AC	Laser Type:	Chemical Acid Etching
Power:	5.5kw/380V	Etching Size:	500*600mm
Heater:	Titanium, 3kw	Cooling System:	Titanium Pipe
Out Size:	185015001550mm	Package:	Wooden Package
Transport Package:	Standard Export Wooden Case	Specification:	CE
Trademark:	GOLDEN EAGLE	Origin:	China
HS Code:	84862090	Supply Ability:	25sets/Month
After-sales Service:	1year. After 1year,Once Some Components Are Broke	Warranty:	1year. After 1year,Once Some Components Are Broke
Type:	Photochemical Etching Machine	Object:	Metal
Usage:	Corrosion & Hollowed-out, Mould	Certification:	CE
Samples:	US$ 500/Piece 1 Piece(Min.Order) \| Request Sample

DB5060 Steel Flexible Dies Etching Machine

Power:	7.5KW/380V
Working Size:	500*600mm
Etching type:	Vertical spraying
Working Temp:	40~55 degrees
Heat System:	Titanium, 3KW
Cool System:	Titanium Pipe
Motor power:	4KW/380V
Machine Size:	195013501550mm
Weight About;	550kgs

Control system: Temperature, Speed, Pressure, Network Filter

Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished

Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.
