Chemical Etching Machine with 650*1000mm Etching Area and 2.2kw

Certification
China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

Chemical Etching Machine with 650*1000mm Etching Area and 2.2kw

Chemical Etching Machine with 650*1000mm Etching Area and 2.2kw

Description
Model NO.: GE-S650 Etching Type: Double Spray
Precision: High Precision Condition: New
Model: Ge-S650 Working Size: 650mm Width By Length (Not Limited)
Acid Solution: Ferric Chloride Application: Stainless Steel, Aluminum, Titanium, Copper, Brass
Power: 5.5kw/220V/50Hz Etching Area: 650*1000mm
Etched Type: Double Spray Working Temperature: 37~45° C
Heat System: Titanium, 3kw Vertical Pump: 2.2kw/220V/50Hz
Transport Package: Wooden Case Specification: CE
Trademark: GOLDEN EAGLE Origin: China
HS Code: 848620900 Supply Ability: 50sets/ Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 1year. After 1year,Once Some Components Are Broke
Type: Photochemical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE
Samples: US$ 150/Piece 1 Piece(Min.Order) | Request Sample


Ge-S650 Metal Name Plate Engraving Machine/Metal Acid Etching Machine/Photochemical Etching Machine

Product Parameters



Model GE-S650
Power 5.5kw/220V/50Hz
Working Width 650mm
Etching Area 650*1000mm
Etched Type Double Spraying
Working Temperature 37~45°C
Heat System Titanium,3KW
Cool System PE Cooling Pipe,25 Meter
Vertical Pump 14pcs ,for up and down
Machine Size 2150*1350*1250mm

Product Description

Automatic Control System:

Speed adjust system
Pressure Adjust System
Temperature control system
High temperatures resist (0~100°C) German PP material
Double Net Filter System
Long times Etching Ability

Introduction:
1. This Ge-S650 Metal Name Plate Engraving Machine is acid photo chemical etching equipment, etchant solution is ferric chloride.
2. This machinecan make nameplates,signs,tags,logos,medals,tags,stencils gobos,metal crafts
and so on.
3. Materials can be Steel, Stainless steel, Copper, Brass, Aluminum,titanium and so on.
4. Machine is double side spraying,we can control separately for up nozzles or bottom nozzles.
5. This machine can also do developer and stripper,only put different chemical in tank.
6. Machine material is German PP plate,can resist high temperature 100 degrees.
The Best Choose in China of Chemical Etching Machine

Etching Process:
degreasing --- spray photoresist ink on metal ---- drying --- exposing ---- developer ---- etching ---
stripping -- coloring
After Sales Service

After sales service:

1.Customized design is available.

2.Master operator training program for free.

3.Reasonable and  negotiable  price,short lead time.

FAQ


1.Q:Are you trading company or a factory ?

   A: We are manufactory and We have import and export License .

2.Q:Where is your factory ?How Can I visit there?

   A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.

3.Q:How can I get some samples ?

   A: we are honores to offer you samples,please contact us anytime !

4.Q: How does your factory do regarding quality control ?

   A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.

5.Q:Why us ?

   A: 1.  20 years machine manufacture experiences !

       2.  More than 10 years good credit supplier on Made-in-China

       3.  satisfaction or we'll refund or rerun-your choice

       4.  Etching technology can be provided for free to our customer by our well-trained and professional  engineers and staffs.

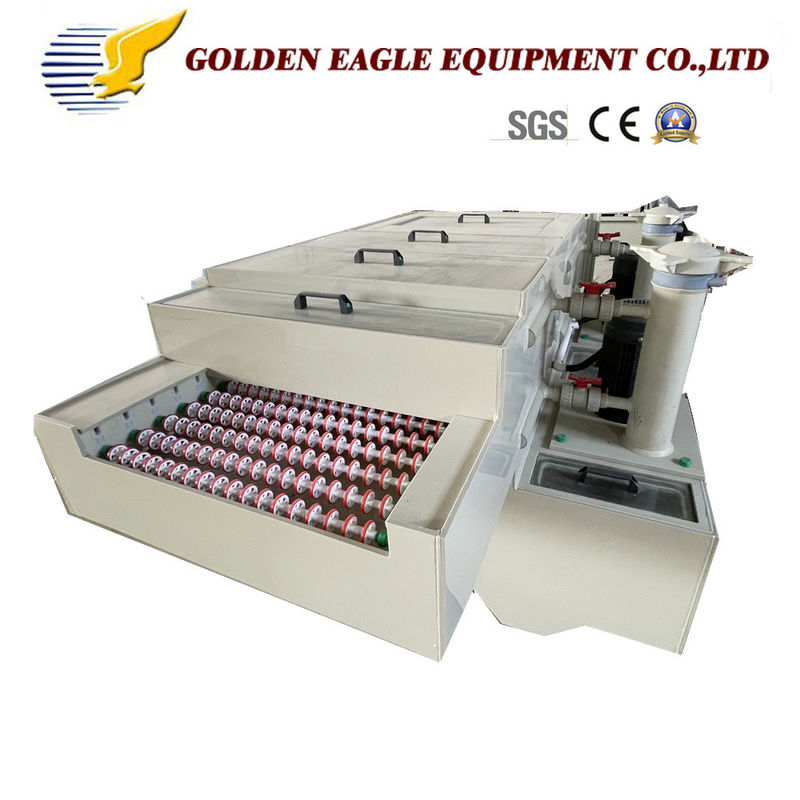

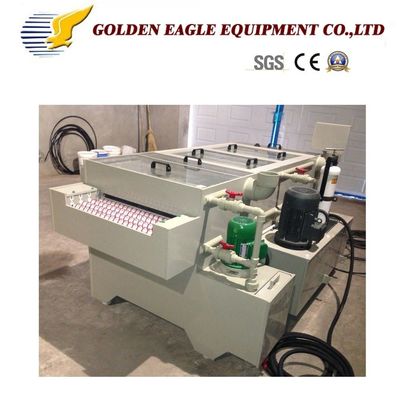

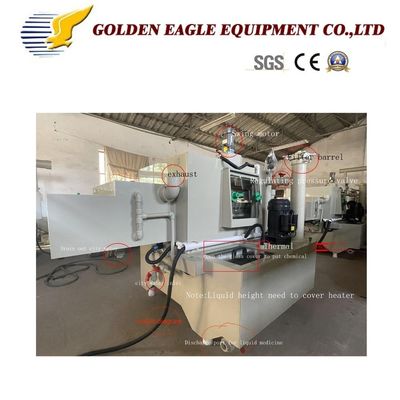

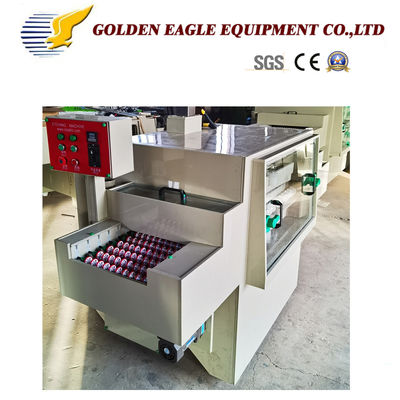

Detailed Photos

The Best Choose in China of Chemical Etching Machine

The Best Choose in China of Chemical Etching Machine
The Best Choose in China of Chemical Etching Machine
The Best Choose in China of Chemical Etching Machine
The Best Choose in China of Chemical Etching Machine

The Best Choose in China of Chemical Etching Machine
The Best Choose in China of Chemical Etching Machine

The Best Choose in China of Chemical Etching Machine
The Best Choose in China of Chemical Etching Machine

Certifications

The Best Choose in China of Chemical Etching Machine

Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.



Packaging & Shipping

The Best Choose in China of Chemical Etching Machine
