1300mm Stainless Steel Etch Machines For Aluminum Decoration Plate

Certification
China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

1300mm Stainless Steel Etch Machines For Aluminum Decoration Plate

1300mm Stainless Steel Etch Machines For Aluminum Decoration Plate

Description
Model NO.: GE-SK48 Etching Type: One-Side Spray
Precision: Precision Condition: New
Working Width: 1550mm/1300mm Etching System: Spraying And Oscillate System
Metal Plate Thickness: 0.2~5.5mm Conveyor Speed: 0~6.5m/Min
Heater/Cooler: Titanium Pipe Application: Decorative Plate, Elevator Plate Etc.
Engraving Machine Type: Acid Chemical Etching Control: Automatic
Current: AC Laser Type: Photochemical Etching Machine
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: GOLDEN EAGLE Origin: China
HS Code: 848620900 Supply Ability: 20sets/Month
After-sales Service: After 1year,Once Some Components Are Broke Warranty: After 1year,Once Some Components Are Broke
Type: Photochemical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE

Decoration Plate Etching Machine / Stainless Steel Etching Machine for elevator plate, decorative plate


Stainless Steel Etching Machine for elevator door

SK48 Automatic Etching/ Stripping Machine
Product Parameters



SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs

Product Description

Process:  load  (3meter)  +  etching  (3meter)+  micro etching  (1meter)+washing  (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.
2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.

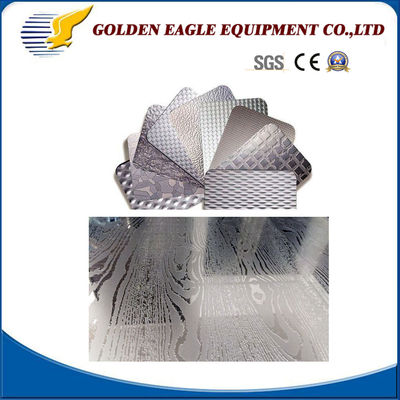

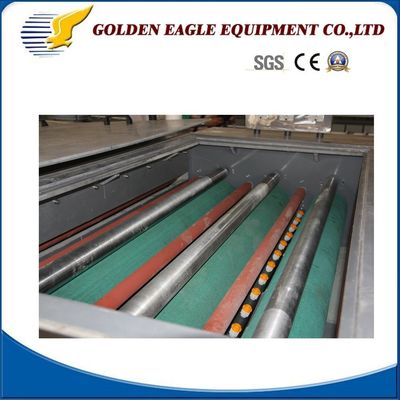

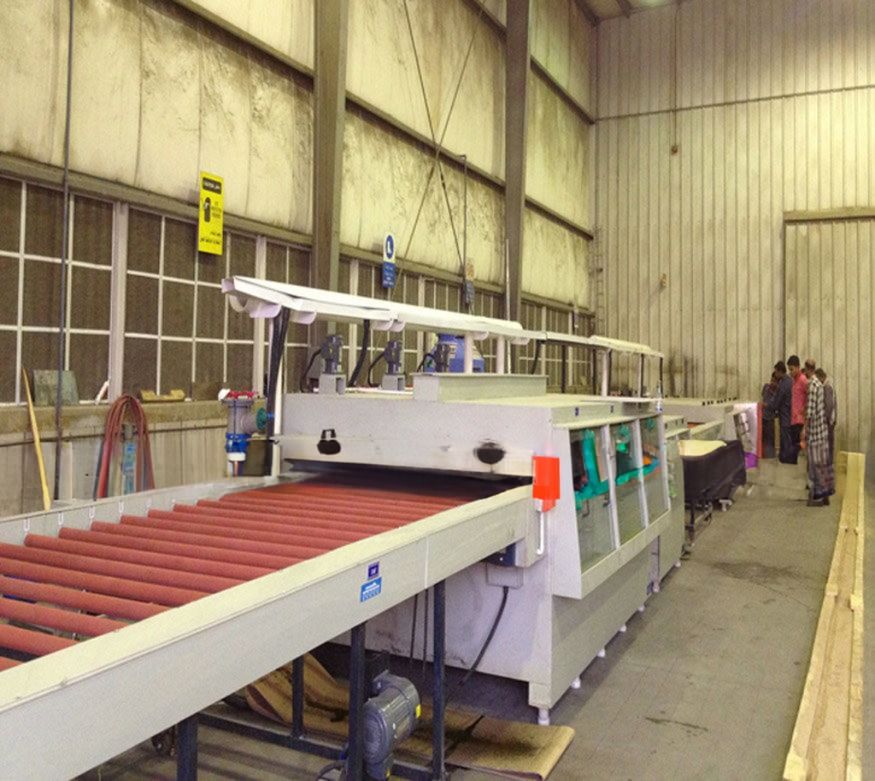

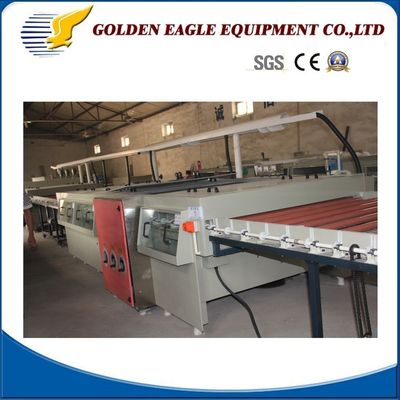

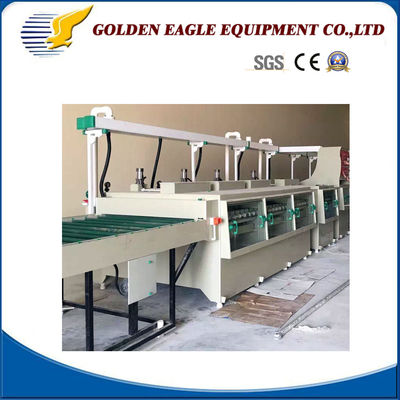

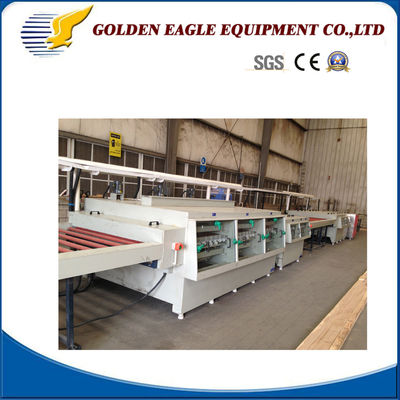

Detailed Photos

Stainless Steel Etch Machines/Aluminum Decoration PlateStainless Steel Etch Machines/Aluminum Decoration PlateStainless Steel Etch Machines/Aluminum Decoration PlateStainless Steel Etch Machines/Aluminum Decoration PlateStainless Steel Etch Machines/Aluminum Decoration Plate

Packaging & Shipping

Stainless Steel Etch Machines/Aluminum Decoration PlateStainless Steel Etch Machines/Aluminum Decoration Plate
