Stainless Steel Etching Machine / Press Plate Etching Machine

Stainless Steel Etching Machine / Press Plate Etching Machine

Description
Model NO.: GE-SK48 Etching Type: One-Side Spray
Precision: Precision Condition: New
Working Width: 1550mm/1300mm Etching System: Spraying And Oscillate System
Metal Plate Thickness: 0.2~5.5mm Conveyor Speed: 0~6.5m/Min
Application: Press Plate, Decorative Plate, Elevator Plate Etc. Engraving Machine Type: Acid Chemical Etching
Control: Automatic Current: AC
Laser Type: Photochemical Etching Machine Transport Package: Standard Export Wooden Case
Specification: CE Trademark: GOLDEN EAGLE
Origin: China HS Code: 84862090
Supply Ability: 20sets/Month After-sales Service: After 1year,Once Some Components Are Broke
Warranty: After 1year,Once Some Components Are Broke Type: Photochemical Etching Machine
Object: Metal Usage: Corrosion & Hollowed-out
Certification: CE

Press Plate Etching Machine / Stainless Steel Etching Machine


Stainless Steel Etching Machine for elevator door

SK48 Automatic Etching/ Stripping Machine
Product Parameters



SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs

Product Description

Process:  load  (3meter)  +  etching  (3meter)+  micro etching  (1meter)+washing  (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.
2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.

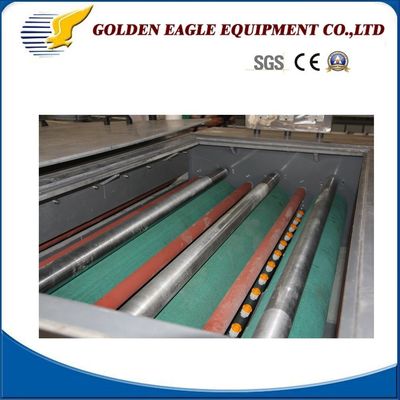

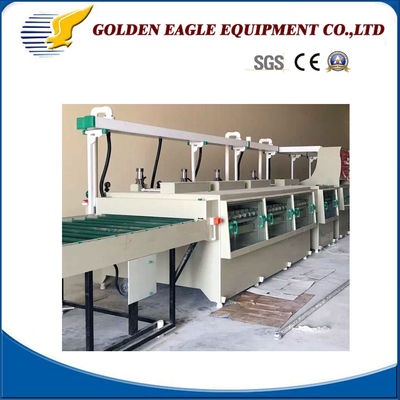

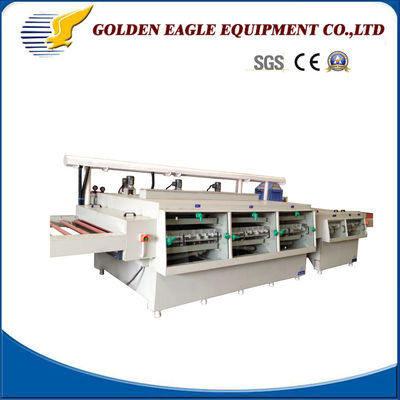

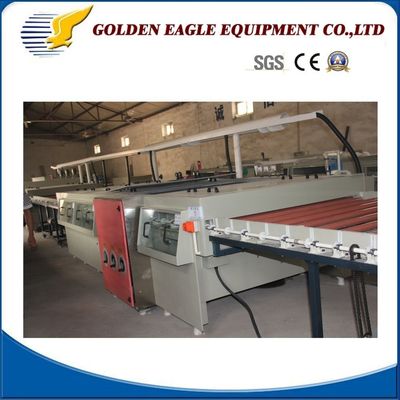

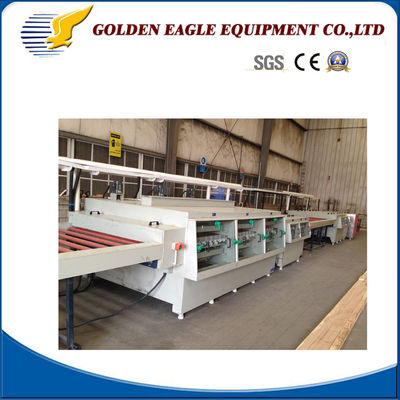

Detailed Photos

Press Plate Etching Machine / Stainless Steel Etching MachinePress Plate Etching Machine / Stainless Steel Etching MachinePress Plate Etching Machine / Stainless Steel Etching MachinePress Plate Etching Machine / Stainless Steel Etching MachinePress Plate Etching Machine / Stainless Steel Etching Machine

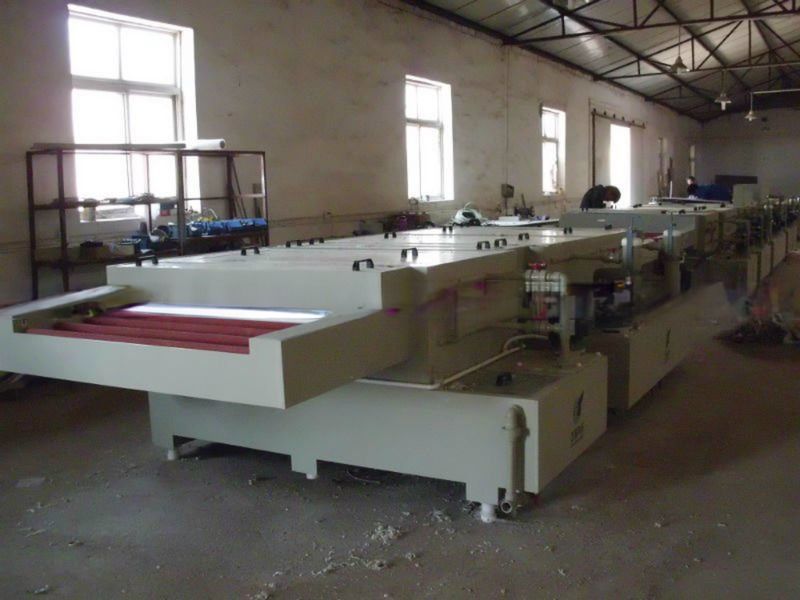

Packaging & Shipping

Press Plate Etching Machine / Stainless Steel Etching MachinePress Plate Etching Machine / Stainless Steel Etching Machine
