Huge Metal Decorative Plate Etching Machine HE1500 Double Spray

Huge Metal Decorative Plate Etching Machine HE1500 Double Spray

Description
Model NO.: HE1500 Etching Type: Double Spray
Precision: Precision Condition: New
Accuracy: +/- 0.02mm Wokring Width: 650mm (Can Be Order)
Etching Area Length: 2meter Acid Solution: Ferric Chloride
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: GOLDEN EAGLE Origin: China
HS Code: 84862090 Supply Ability: 20sets/Month
After-sales Service: After 1year,Once Some Components Are Broke Warranty: After 1year,Once Some Components Are Broke
Type: Electrical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE

HE1500 huge metal decorative plate etching machine


Stainless Steel Etching Machine for elevator door

SK48 Automatic Etching/ Stripping Machine
Product Parameters



SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs

Product Description

Process:  load  (3meter)  +  etching  (3meter)+  micro etching  (1meter)+washing  (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.
2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.

Detailed Photos

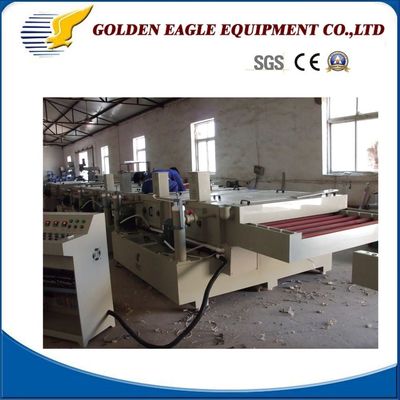

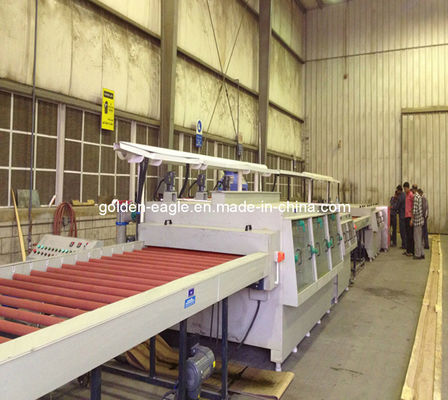

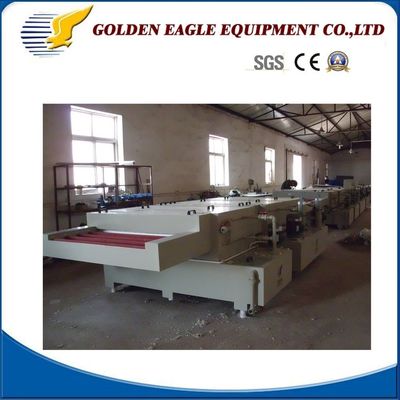

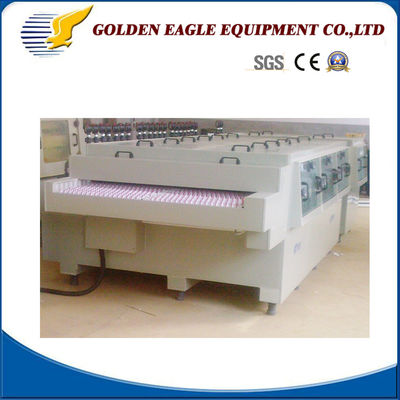

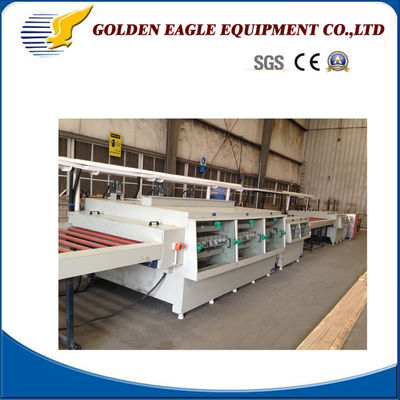

Huge Metal Decorative Plate Etching Machine (HE1500)Huge Metal Decorative Plate Etching Machine (HE1500)Huge Metal Decorative Plate Etching Machine (HE1500)Huge Metal Decorative Plate Etching Machine (HE1500)Huge Metal Decorative Plate Etching Machine (HE1500)

Packaging & Shipping

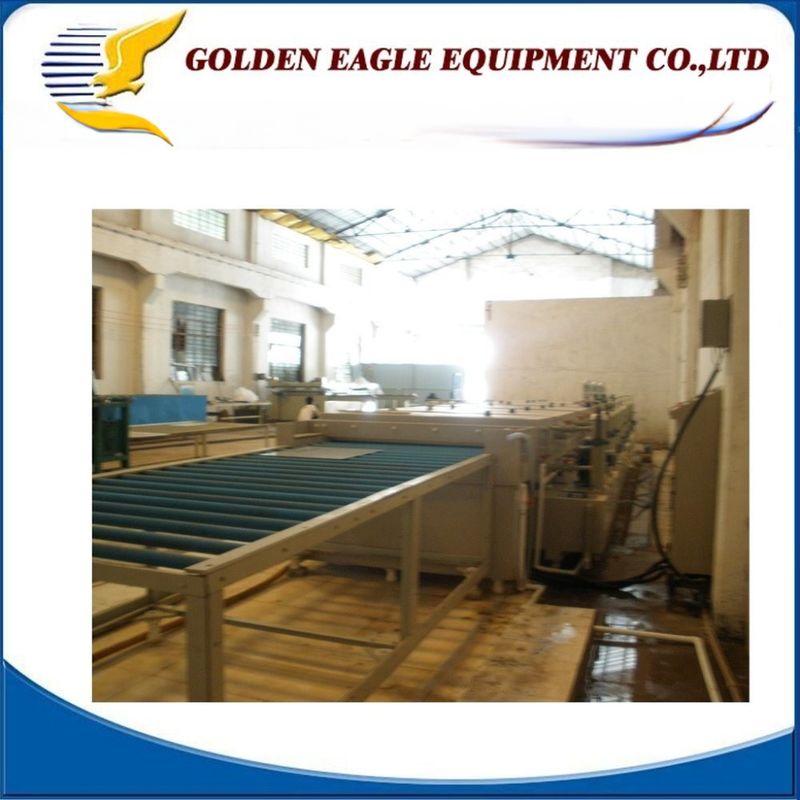

Huge Metal Decorative Plate Etching Machine (HE1500)Huge Metal Decorative Plate Etching Machine (HE1500)
