Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion

Etching Ferric Chloride Huge Metal Plate Etching Machine SK48 For Corrosion

Description
Model NO.: SK48 Etching Type: Double Spray
Precision: High Precision Condition: New
Working Size: 1350mm Or 1500mm Etching Solution: Ferric Chloride
Engraving Machine Type: Chemical Etching Control: Automatic
Current: AC Laser Type: Chemical Etching
Transport Package: Wooden Package Specification: CE
Trademark: Golden Eagle Origin: Beijing, China (Mainland)
HS Code: 848620900 Supply Ability: 10sets/Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 1year. After 1year,Once Some Components Are Broke
Type: Electrical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE


Large decorative metal plate etching machine

SK48 Automatic Etching/ Stripping Machine
Product Parameters



SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs

Product Description

Process:  load  (3meter)  +  etching  (3meter)+  micro etching  (1meter)+washing  (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.
2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.

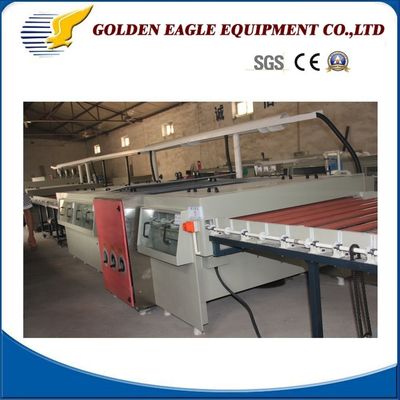

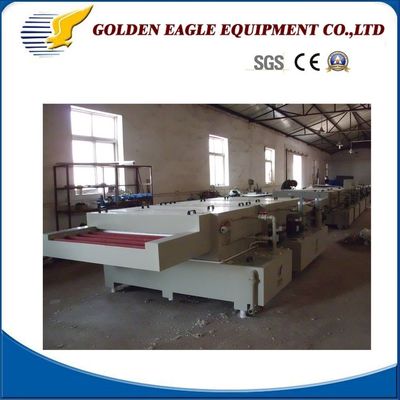

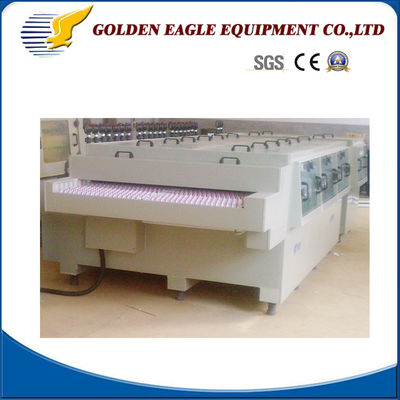

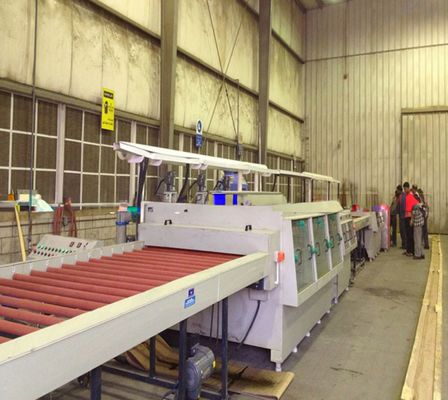

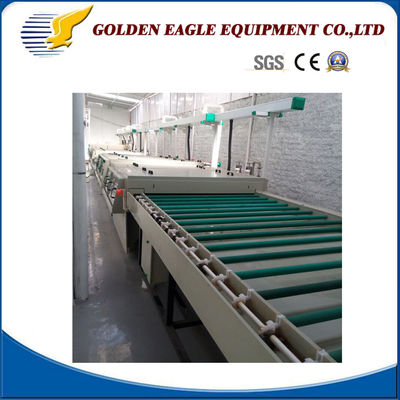

Detailed Photos

Huge Metal Plate Etching Machine (SK48)Huge Metal Plate Etching Machine (SK48)Huge Metal Plate Etching Machine (SK48)Huge Metal Plate Etching Machine (SK48)Huge Metal Plate Etching Machine (SK48)

Huge Metal Plate Etching Machine (SK48)Huge Metal Plate Etching Machine (SK48)

Packaging & Shipping

Huge Metal Plate Etching Machine (SK48)Huge Metal Plate Etching Machine (SK48)
