High Precision Elevator Decorative Plate Etching Machine GE-HB48-3

Certification
China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

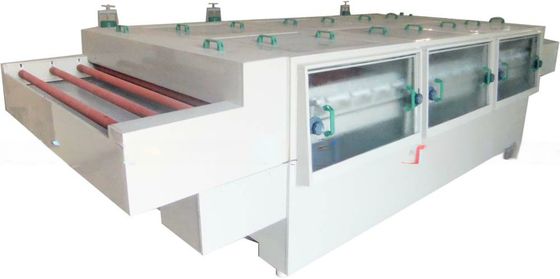

High Precision Elevator Decorative Plate Etching Machine GE-HB48-3

High Precision Elevator Decorative Plate Etching Machine GE-HB48-3

Description
Model NO.: GE-HB48-3 Etching Type: One-Side Spray
Precision: High Precision Condition: New
Model: Ge-Hb48-3 Etching Size: 1500*3000mm
Etching Pressure: 2kg/Square Cm. Working Temperature: 0 To 55
Highest Temperature: 70 Out Szie: 3500*2150*1300mm
Control System: Temperature, Pressureand Network Filter. Brand: Golden Eagle
Package: Wooden Package Leading Time: 25days
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: GOLDEN EAGLE Origin: China
HS Code: 848620900 Supply Ability: 20sets/Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 1year. After 1year,Once Some Components Are Broke
Type: Electrical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE
Samples: US$ 500/Piece 1 Piece(Min.Order) | Request Sample

Decorative Stainless Steel Plate Etching Machine



SK48 Automatic Etching/ Stripping Machine
Product Parameters



SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs

Product Description

Process:  load  (3meter)  +  etching  (3meter)+  micro etching  (1meter)+washing  (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.

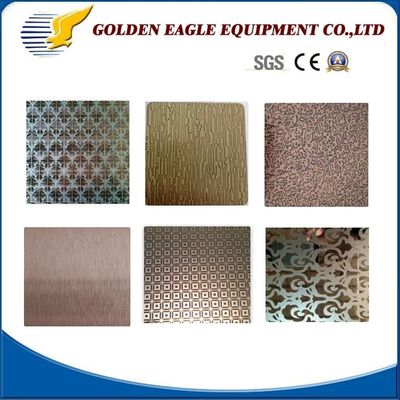

2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.

Detailed Photos

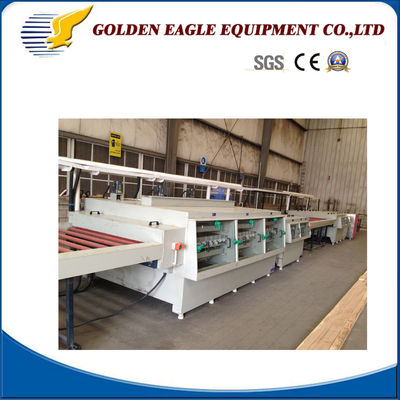

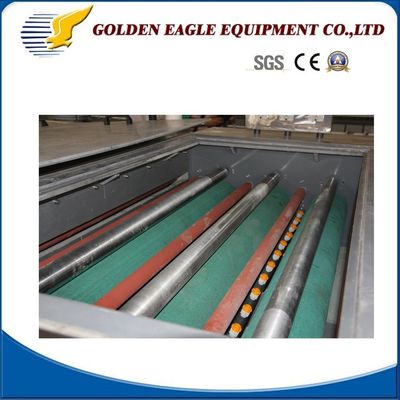

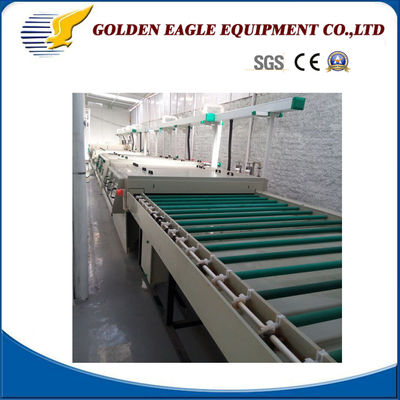

Decorative Plate Etching Machine for Elevator (GE-HB48-3)Decorative Plate Etching Machine for Elevator (GE-HB48-3)Decorative Plate Etching Machine for Elevator (GE-HB48-3)Decorative Plate Etching Machine for Elevator (GE-HB48-3)Decorative Plate Etching Machine for Elevator (GE-HB48-3)

Decorative Plate Etching Machine for Elevator (GE-HB48-3)Decorative Plate Etching Machine for Elevator (GE-HB48-3)

Packaging & Shipping

Decorative Plate Etching Machine for Elevator (GE-HB48-3)Decorative Plate Etching Machine for Elevator (GE-HB48-3)
