4kw*3PCS Etching Pump Metal Etching Stripping Machine Sk48 Automatic

4kw*3PCS Etching Pump Metal Etching Stripping Machine Sk48 Automatic

Description
Model NO.: SK48 Etching Type: One-Side Spray, Single Side Spray
Precision: High Precision Condition: New
Working Size: 1350mm Or 1500mm Etching Solution: Ferric Chloride
Etching System: Spraying Working Width: 1350mm
Etching Pump: 4kw*3PCS Stripping Pump: 5.5kw*2 PCS
Working Speed: 0.5~6.5 M/Min (Adjust) Machine Size: 20550*2250*1850mm
Transport Package: Wooden Package Specification: CE
Trademark: Golden Eagle Origin: Beijing, China (Mainland)
HS Code: 84862090 Supply Ability: 25sets/Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 1year. After 1year,Once Some Components Are Broke
Type: Photochemical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out, Etching/ Stripping Certification: CE

SK48 Automatic Etching/ Stripping Machine


SK48 Automatic Etching/ Stripping Machine
Product Parameters



SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs

Product Description

Process:  load  (3meter)  +  etching  (3meter)+  micro etching  (1meter)+washing  (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.
2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.

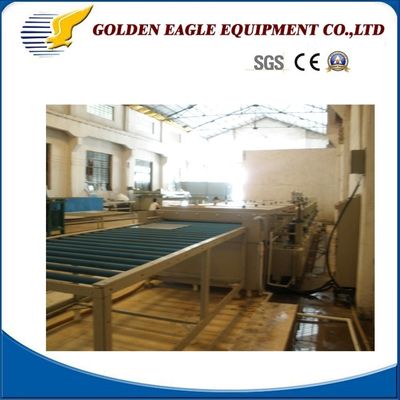

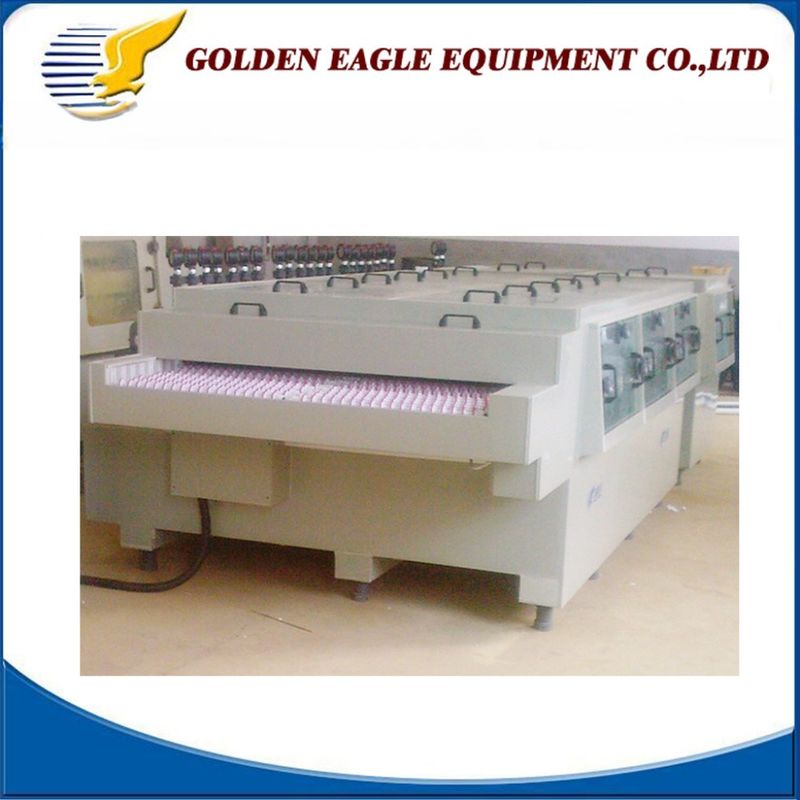

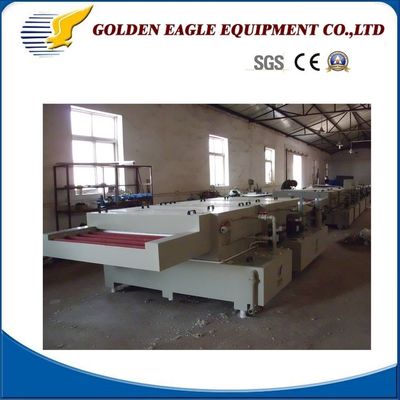

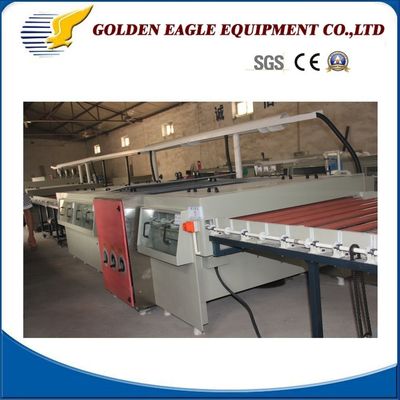

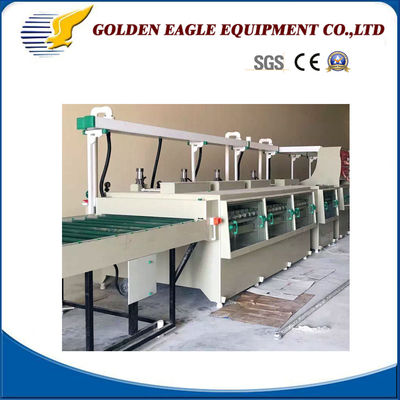

Detailed Photos

Sk48 Automatic Decorative Metal Plate Etching Stripping MachineSk48 Automatic Decorative Metal Plate Etching Stripping MachineSk48 Automatic Decorative Metal Plate Etching Stripping MachineSk48 Automatic Decorative Metal Plate Etching Stripping MachineSk48 Automatic Decorative Metal Plate Etching Stripping Machine

Packaging & Shipping

Sk48 Automatic Decorative Metal Plate Etching Stripping MachineSk48 Automatic Decorative Metal Plate Etching Stripping Machine
