Photochemical Etching Machine For Stainless Steel Decorative Metal Plate

Certification
China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

Photochemical Etching Machine For Stainless Steel Decorative Metal Plate

Photochemical Etching Machine For Stainless Steel Decorative Metal Plate

Description
Model NO.: GE-SK48 Etching Type: Single Side Spray
Precision: Precision Condition: New
Working Size: 1350mm Or 1500mm Etching Solution: Ferric Chloride
Matierial: Stainless Steel,Aluminum,Copper,Brass Etc. Transport Package: Wooden Package
Specification: CE Trademark: Golden Eagle
Origin: Beijing, China (Mainland) HS Code: 8486209000
Supply Ability: 25sets/Month After-sales Service: 1year. After 1year,Once Some Components Are Broke
Warranty: 1year. After 1year,Once Some Components Are Broke Type: Photochemical Etching Machine
Object: Metal Usage: Corrosion & Hollowed-out
Certification: CE Samples: US$ 150/Piece 1 Piece(Min.Order) | Request Sample

Stainless Steel Etching Machine for elevator door

SK48 Automatic Etching/ Stripping Machine
Product Parameters



SK48 Automatic Etching/ Stripping Machine
Power 38.5KW/380V/50HZ
Working width 1500mm
Etching system Spraying & Swing system
Heat System 3KW Titanium * 5pcs
Etching pump 4.5KW*3pcs
Stripping Pump 5.5KW*2 pcs
Working Speed 0.5~6.5 M/Min (adjust)
Machine Size 18550*2250*1850mm
Weight About 3500 kgs

Product Description

Process:  load  (3meter)  +  etching  (3meter)+  micro etching  (1meter)+washing  (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)


Control System:

Temperature; Conveyor Speed; Filter; Pressure Sparying.

Feature:
1. This etching /Stripping Line use acid etching solution to get any patterns on the metal surface. Install oscillate system to get perfect etching quality.
2. Products can be decorative stainless steel plate, huge aluminum plate, elevator door, huge name plate etc.
3. Materials can be Iron, Stainless steel, Copper, Brass, Aluminum, titanium etc.
4. Metal plate thickness is approx 0.6~1.0mm, the etching depth is 0.06~0.08mm.

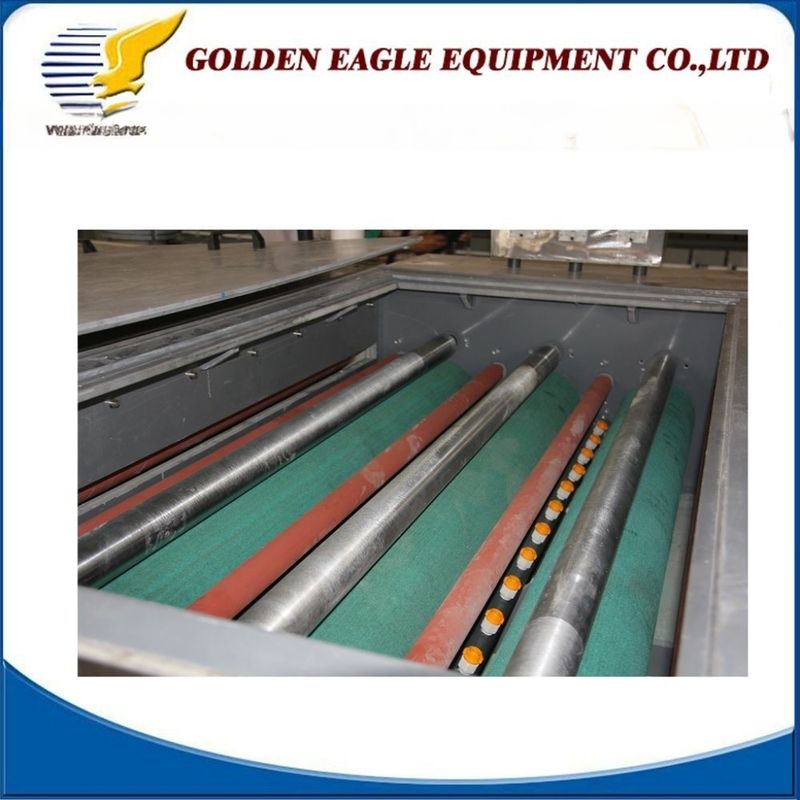

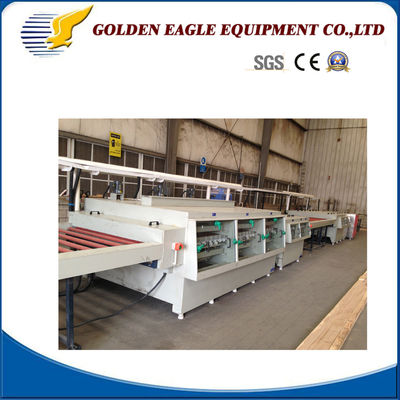

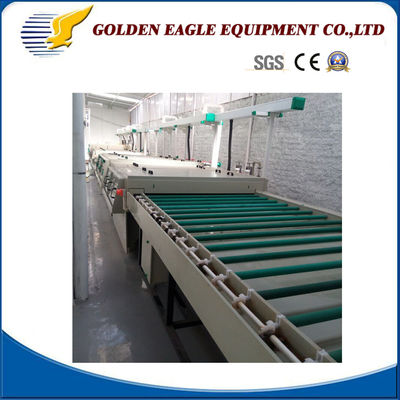

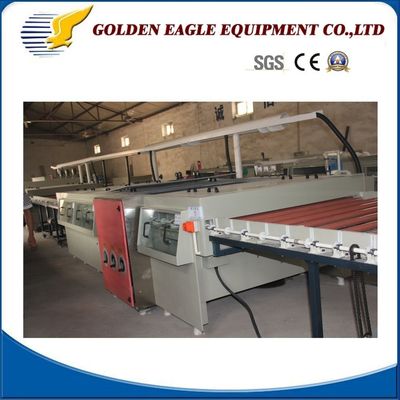

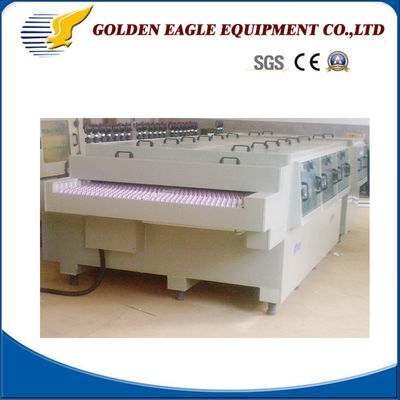

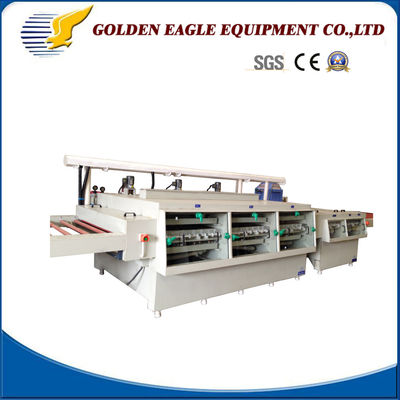

Detailed Photos

Stainless Steel Decorative Metal Plate Etching Machine for Elevator DoorStainless Steel Decorative Metal Plate Etching Machine for Elevator DoorStainless Steel Decorative Metal Plate Etching Machine for Elevator DoorStainless Steel Decorative Metal Plate Etching Machine for Elevator DoorStainless Steel Decorative Metal Plate Etching Machine for Elevator Door
