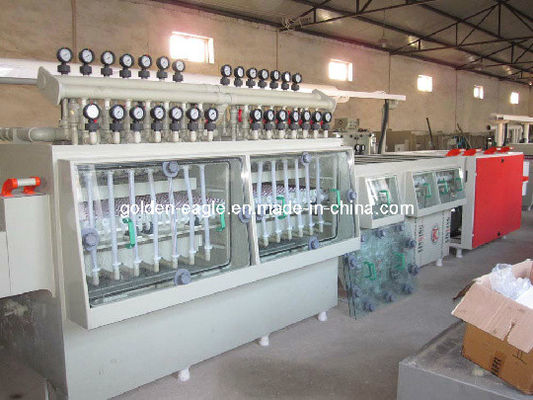

Versatile Metal PCB Etching Equipment for Various Industrial Applications by Ge-Sk9

Versatile Metal PCB Etching Equipment for Various Industrial Applications by Ge-Sk9

Model NO.: GE-SK9 Etching Type: Double Spray
Precision: High Precision Condition: New
Power: 380V/50Hz Working Width: 650mm
Working Height: 850mm (+/50mm Adjust) Etching System: Oscillate System
Workpiece Thickness: 0.2~3.2mm Thickness Working Temperature: 35~55
Brand: Golden Eagle Leading Time: 25day
Package: Wood Package Transport Package: Standard Export Wooden Case
Specification: CE Trademark: GOLDEN EAGLE
Origin: China HS Code: 84862090
Supply Ability: 15sets/ Month After-sales Service: 1year. After 1year, Once Some Components Are Broke
Warranty: 1year. After 1year, Once Some Components Are Broke Type: Photochemical Etching Machine
Object: Metal Usage: Corrosion & Hollowed-out
Certification: CE Samples: US$ 500/Piece 1 Piece(Min.Order) | Request Sample

Ge- Sk12 PCB Etching Equipment / PCB machine manufactory

    In the PCB making solutions, it is vital to have efficient and reliable production processes that ensure high-quality results. One crucial aspect of this is the etching process used in the PCBs (Printed Circuit Boards). To meet these requirements, we introduce our state-of-the-art  PCB Etching Machine.

    This machine is specifically designed for the chemical etching production line of PCBs used in pcb double sides product. It offers a range of advanced features and benefits that enhance efficiency, precision, and consistency in the etching process.

     Superior Performance:Our PCB Etching Machine employs cutting-edge technology to achieve excellent etching results. With precise control    over parameters such as etchant concentration, temperature, and agitation, it ensures consistent and uniform etching across the entire PCB surface.

    High Efficiency: The machine incorporates innovative design elements that maximize productivity. Its automated functions streamline the overall etching process, reducing both time and labor costs. Additionally, the machine's high-speed capabilities significantly enhance production throughput.

    Versatility: Our  PCB Etching Machine is compatible with various pcb making solution designs. Whether you require single-layer or multi-layer Aluminium PCBs, our machine can accommodate your specific needs. This versatility makes it an ideal choice for manufacturers catering to diverse pcb making applications.

    Reliability: We understand the importance of reliability in industrial production processes. Therefore, our PCB  making Machine is built to provide long-lasting performance. Robust construction, durable components, and advanced control systems ensure that the machine operates consistently, minimizing downtime and maximizing production uptime.

    Safety: Safety is of utmost importance when dealing with chemical etching processes. Our machine incorporates comprehensive safety features and protocols to protect operators and minimize potential risks. These measures include fume extraction systems, emergency stop buttons, and proper containment and disposal systems for chemicals.

    Investing in our PCB Etching Machine will significantly enhance your pcb making solution production line. With its superior performance, high efficiency, versatility, reliability, and safety features, you can achieve consistent, high-quality results while optimizing your overall manufacturing process.

    Please feel free to contact us for further information or to discuss how our PCB Etching Machine can meet your specific requirements

Product Description
Machine name:  Ge- Sk12 PCB Des Line with Developing Etching Stripping machine
Power supply: 380V/415V/440V,50/60HZ three phase depend on clients' plant supply
Water supply: DI water or city water
Heating type: Titanium heater
Auxiliary equipment: Cooling chiller(Average temp. control for better etching effect)
Working width 650mm
Working height 850mm (+/50mm adjust)
Min / Max board size 50*50mm / 650mm*L
Etching system Double Spray with Oscillate system
Workpiece thickness 0.2~3.2mm
Working Temperature 35~55
Conveyor Speed 0.5~6m/min
Machine dimension 25000*1700*1850mm
Production capacity: By counting the horizontal speed to design matching machine length
Lead time: Within 25 working days

Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material

Process flow: Load---- Developing----- Pressure water Washing---- running water washing---- Blot up ----cold windy ----drying hot---- wind drying--- checking---- Etching1, 2 ----Etching3, 4---- Pressure Washing--- City Water Washing ----Checking Stripping1, 2 ----Pressure Washing---- City Water Washing---- Blot Up ----Cold & Hot Dry ----Unload

Ge-Sk9 PCB Etching Equipment PCB Machine

Detailed Photos

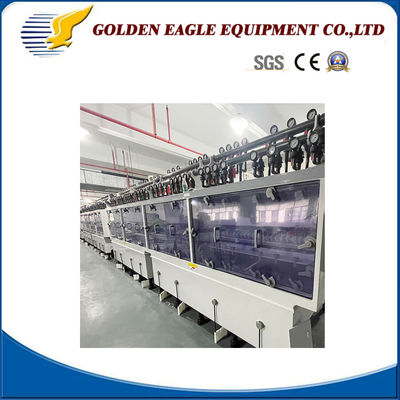

Ge-Sk9 PCB Etching Equipment PCB Machine

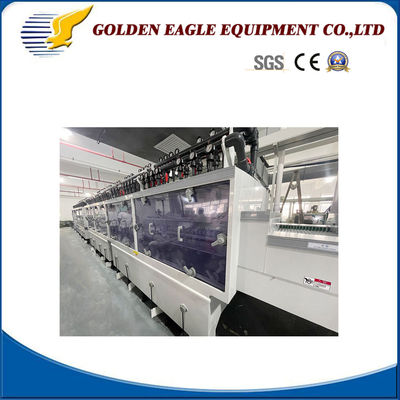

Ge-Sk9 PCB Etching Equipment PCB Machine

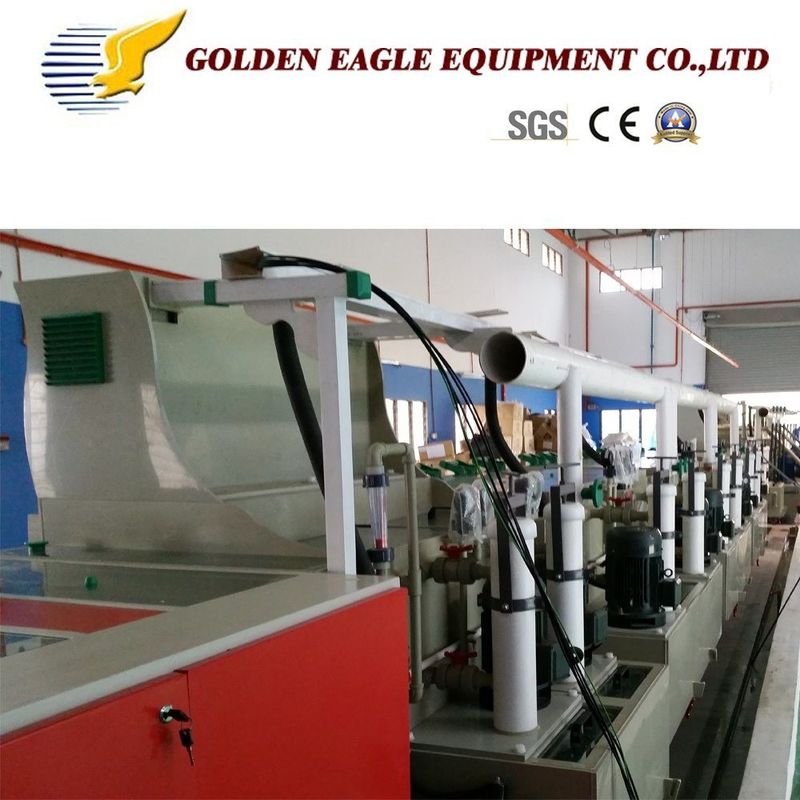

Ge-Sk9 PCB Etching Equipment PCB Machine

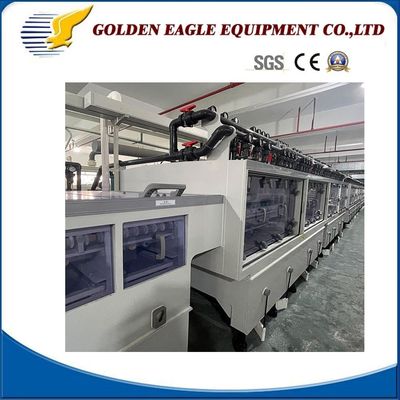

Ge-Sk9 PCB Etching Equipment PCB Machine

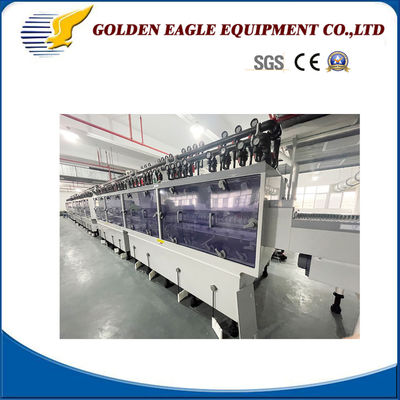

Ge-Sk9 PCB Etching Equipment PCB Machine



Ge-Sk9 PCB Etching Equipment PCB Machine


1.Q:Are you trading company or a factory ?

   A: We are manufactory and We have import and export License .

2.Q:Where is your factory ?How Can I visit there?

   A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.

3.Q:How can I get some samples ?

   A: we are honores to offer you samples,please contact us anytime !

4.Q: How does your factory do regarding quality control ?

   A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.

5.Q:Why us ?

   A: 1.  20 years machine manufacture experiences !

       2.  More than 10 years good credit supplier on Made-in-China

       3.  satisfaction or we'll refund or rerun-your choice

       4.  Etching technology can be provided for free to our customer by our well-trained and professional  engineers and staffs.

After Sales Service


After sales service:

1.Customized design is available.

2.Master operator training program for free.

3.Reasonable and  negotiable  price,short lead time.


Packaging & Shipping

Ge-Sk9 PCB Etching Equipment PCB Machine
Ge-Sk9 PCB Etching Equipment PCB Machine
Ge-Sk9 PCB Etching Equipment PCB Machine

Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.

Ge-Sk9 PCB Etching Equipment PCB Machine
