GE-OSP6 OSP Production Line PCB Equipment with Water Consumption of 8-12L/Min to Meet

China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

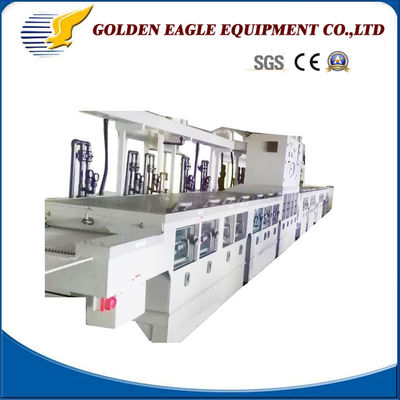

GE-OSP6 OSP Production Line PCB Equipment with Water Consumption of 8-12L/Min to Meet

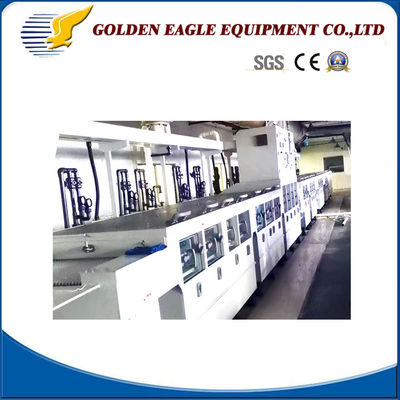

GE-OSP6 OSP Production Line PCB Equipment with Water Consumption of 8-12L/Min to Meet

Model NO.: GE-OSP6 Base Material: Aluminum
Insulation Materials: Organic Resin Model: PCB
Brand: Golden Eagle Transfer Speed: 1.0~6.0m/Min(Adjustable Stepless Frequency Convers
PCB Size: 600*600mm(Max) 80*60mm(Min) PCB Thickness: 0.2~3.2mm
Transmission Width: 650mm(Effective Width:600mm) Wheel: 30mm
Wheel Shaft Base: 35mm Water Consumption: 8~12L/Min
Consumption Of Pure Water: 16~24L/Min Power Consumption: According To The Actual Process
Control System: PLC Programmable Controller Transport Package: Wooden Package
Specification: CE Trademark: Golden Eagle
Origin: Beijing, China (Mainland) HS Code: 84862090
Supply Ability: 20sets/Month Type: Rigid Circuit Board
Dielectric: FR-4 Material: Fiberglass Epoxy
Flame Retardant Properties: V0 Mechanical Rigid: Rigid
Processing Technology: Electrolytic Foil Samples: US$ 500/Piece 1 Piece(Min.Order) | Request Sample

GE-OSP6 PCB equipment-OSP Production line

Enter-degreasing-washing-microetch-washing-DIPwashing-DI water washing-OSP-washing-DI water washing-drying-segregate-cooling output


Transfer speed: 1.0~6.0m/min(Adjustable stepless frequency conversion)
PCB size: 600× 600mm(max) 80× 60mm(min)
PCB thickness: 0.2~3.2mm
Transmission width: 650mm(effective width: 600mm)
Wheel: 30mm
Wheel shaft base: 35mm
Water consumption: 8~12L/min
Consumption of pure water: 16~24L/min
Power consumption: According to the actual process
Control system: PLC programmable controller


(1) quick release fanshaped jets alternate permutation, convenient for maintance.
(2) special wheels straggering prevent wheel marks.
(3) In the OSP part, the special water jet scalpel can remove water/gas film on the surface. This water jet scalpel increases the reaction ability on PCB surface and in the hole. Small capacity tank, fast chemical replacement.

Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material

Ge-OSP6 PCB Equipment-OSP Production Line

Detailed Photos

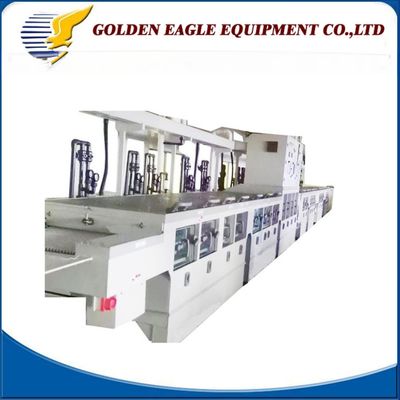

Ge-OSP6 PCB Equipment-OSP Production Line

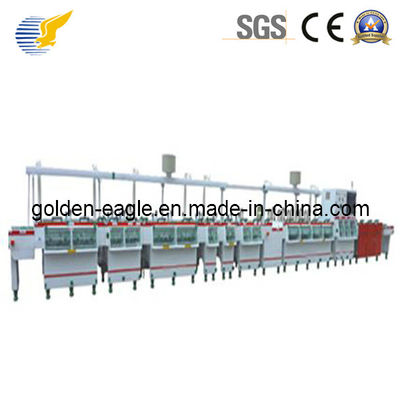

Ge-OSP6 PCB Equipment-OSP Production Line


1.Q:Are you trading company or a factory ?

   A: We are manufactory and We have import and export License .

2.Q:Where is your factory ?How Can I visit there?

   A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.

3.Q:How can I get some samples ?

   A: we are honores to offer you samples,please contact us anytime !

4.Q: How does your factory do regarding quality control ?

   A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.

5.Q:Why us ?

   A: 1.  20 years machine manufacture experiences !

       2.  More than 10 years good credit supplier on Made-in-China

       3.  satisfaction or we'll refund or rerun-your choice

       4.  Etching technology can be provided for free to our customer by our well-trained and professional  engineers and staffs.

After Sales Service


After sales service:

1.Customized design is available.

2.Master operator training program for free.

3.Reasonable and  negotiable  price,short lead time.


Packaging & Shipping

Ge-OSP6 PCB Equipment-OSP Production Line
Ge-OSP6 PCB Equipment-OSP Production Line
Ge-OSP6 PCB Equipment-OSP Production Line

Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.

Ge-OSP6 PCB Equipment-OSP Production Line
