GE-D650 Model NO. Dry Film Laminating Machine With 15-75um Width

GE-D650 Model NO. Dry Film Laminating Machine With 15-75um Width

Description
Model NO.: GE-d650 Thick: 0.05~3.2mm
Dry Film Size Width: 250~610mm, 15~75um Electricity Heater: 2kw/220V; 2PCS
Heat-Press Roller Diameter: 78mm * 2PCS Press Film Temperature: 50-150 Degrees
Air Pressure System: 3-5kg/ C Transport Package: Standard Export Wooden Case
Specification: CE Trademark: GOLDEN EAGLE
Origin: China HS Code: 84862090
Supply Ability: 30sets/Month After-sales Service: 1year. After 1year,Once Some Components Are Broke
Warranty: 1year. After 1year,Once Some Components Are Broke Model: Ge-D650
Power: AC220V/ 50/60Hz/15A Foundation Plate Size: Long: 250~610mm
Width: 250~ 650mm Samples: US$ 500/Piece 1 Piece(Min.Order) | Request Sample

Dry Film Photoresist Laminating Machine for PCB

Dry Film Photoressit Laminating Machine
Product Description

Features:

1. This machine is used for laminating photoresist dry film in PCB industry&metal parts processing industry. Coating the dry photoresist film on the metal plate surface.
2. Automatic temperature control system; Automatic Speed adjust system
3. Good viscosity strength and no bubble; High strength and heat evenly
4. High precision, operate simply

Product Parameters
 Machine Name:Dry Film Laminator
Power AC220V/ 50/60HZ/15A
Foundation plate size Long:250~610mm
Thick:0.05~3.2mm
Width:250~ 650mm
Dry Film Size Width:250~610mm
Outsize/ Weight L830×W1125×H1520mm / 220kg
Electricity  Heater 2KW/AC220V  2PCS
Heat-press roller Diameter:¢78mm * 2PCS
Press film temperature 50ºC-150ºC±2ºCAdjustable
Air Pressure system 3-5kg/ cm3
Exhaust system 12  m2/min, ¢4″×1

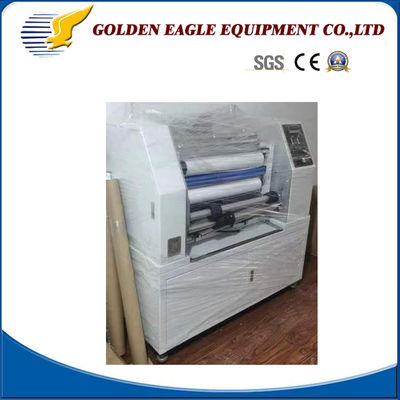

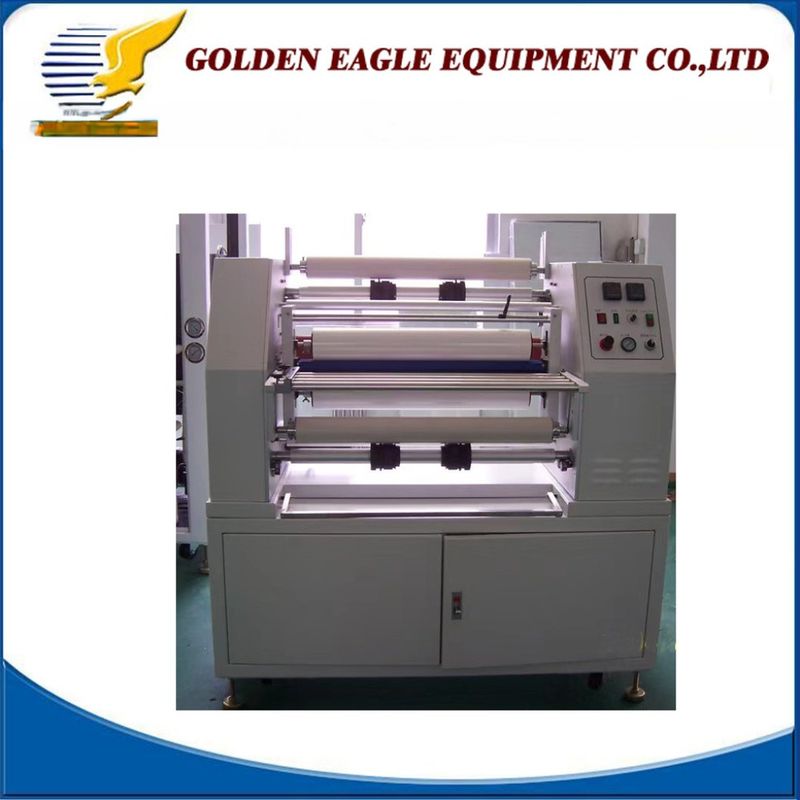

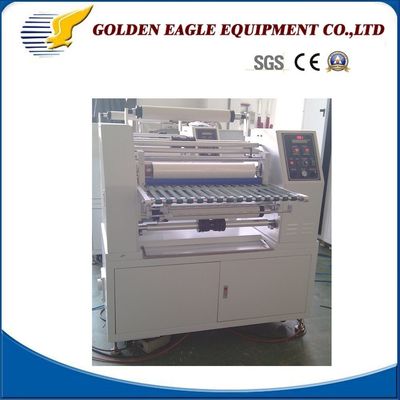

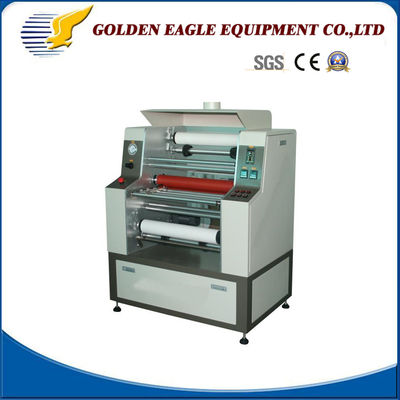

Detailed Photos



Golden Eagle PCB Photoresist Film Laminating Machine Golden Eagle PCB Photoresist Film Laminating Machine Golden Eagle PCB Photoresist Film Laminating Machine Golden Eagle PCB Photoresist Film Laminating Machine Golden Eagle PCB Photoresist Film Laminating Machine Golden Eagle PCB Photoresist Film Laminating Machine Golden Eagle PCB Photoresist Film Laminating Machine Golden Eagle PCB Photoresist Film Laminating Machine Golden Eagle PCB Photoresist Film Laminating Machine




Packaging & Shipping



Golden Eagle PCB Photoresist Film Laminating MachineGolden Eagle PCB Photoresist Film Laminating Machine
