AC220V/ 50/60Hz/15A Ge-D650 Dry Film Photoressit Laminating Machine for PCB Making

AC220V/ 50/60Hz/15A Ge-D650 Dry Film Photoressit Laminating Machine for PCB Making

Description
Model NO.: GE-D650 Electricity Heater: 2kw/AC220V; 2PCS
Heat-Press Roller Diameter: 78mm * 2PCS Press Film Temperature: 50-150 Degrees ( ± 2 Adjustable)
Air Pressure System: 3-5kg/ C Outsize: Long: 830mm× Width 1125mm× High 1520mm
Machine Weight: 220kgs Transport Package: Standard Export Wooden Case
Specification: CE Trademark: GOLDEN EAGLE
Origin: China HS Code: 84862090
Supply Ability: 30sets/Month After-sales Service: 1year. After 1year,Once Some Components Are Broke
Warranty: 1year. After 1year,Once Some Components Are Broke Model: Ge-D650
Power: AC220V/ 50/60Hz/15A Foundation Plate Size: Long: 250~610mm Width: 250~ 650mm
Dry Film Size Width: 250~610mm,15~75um

Dry Film Photoressit Laminating Machine

Product Description

Features:

1. This machine is used for laminating photoresist dry film in PCB industry&metal parts processing industry. Coating the dry photoresist film on the metal plate surface.
2. Automatic temperature control system; Automatic Speed adjust system
3. Good viscosity strength and no bubble; High strength and heat evenly
4. High precision, operate simply

Product Parameters
 Machine Name:Dry Film Laminator
Power AC220V/ 50/60HZ/15A
Foundation plate size Long:250~610mm
Thick:0.05~3.2mm
Width:250~ 650mm
Dry Film Size Width:250~610mm
Outsize/ Weight L830×W1125×H1520mm / 220kg
Electricity  Heater 2KW/AC220V  2PCS
Heat-press roller Diameter:¢78mm * 2PCS
Press film temperature 50ºC-150ºC±2ºCAdjustable
Air Pressure system 3-5kg/ cm3
Exhaust system 12  m2/min, ¢4″×1

Detailed Photos

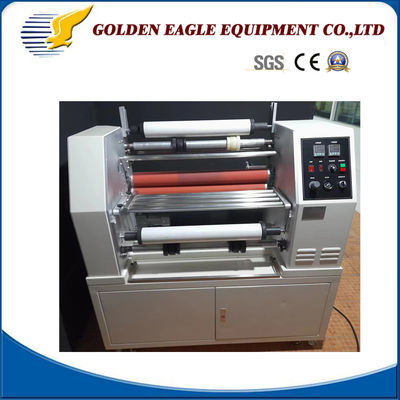

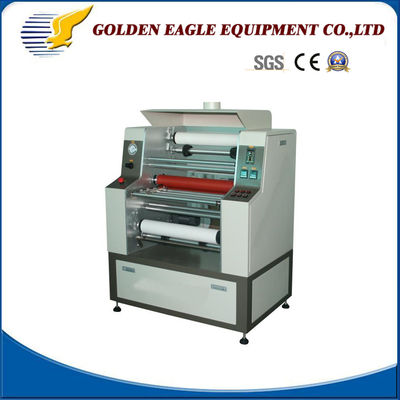

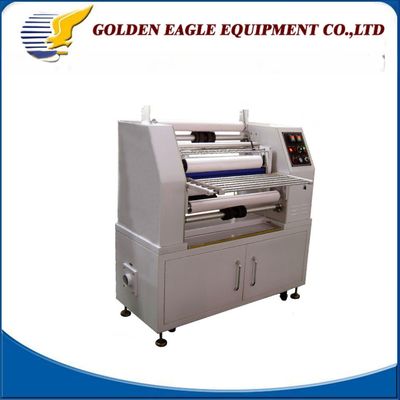

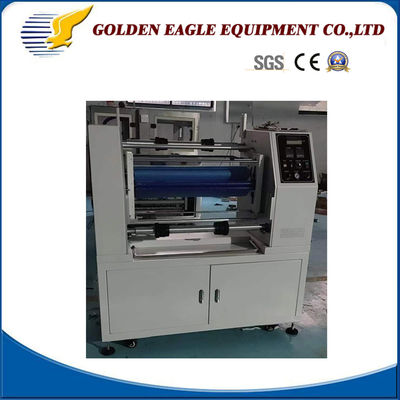

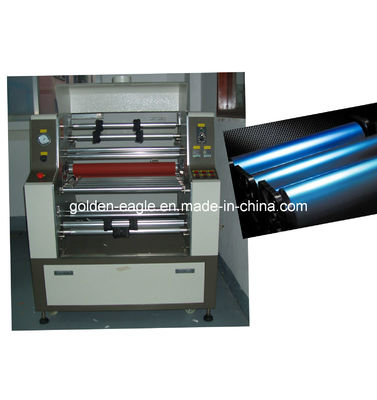

Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
Ge-D650 Dry Film Photoressit Laminating Machine PCB Making Machine

Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.




Packaging & Shipping



Ge-D650 Dry Film Photoressit Laminating Machine PCB Making MachineGe-D650 Dry Film Photoressit Laminating Machine PCB Making Machine
