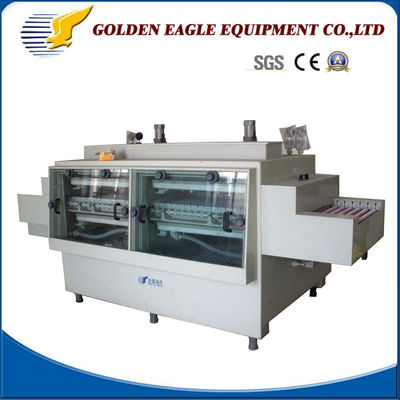

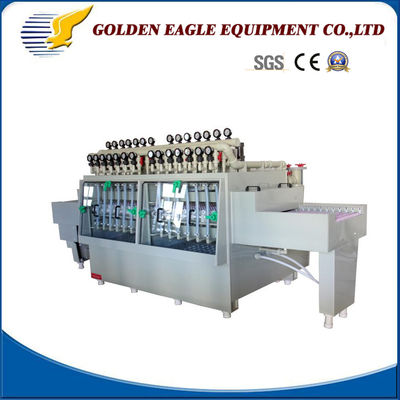

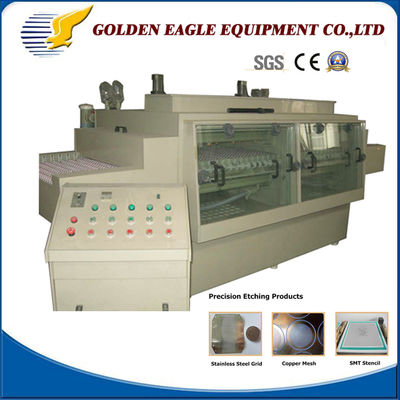

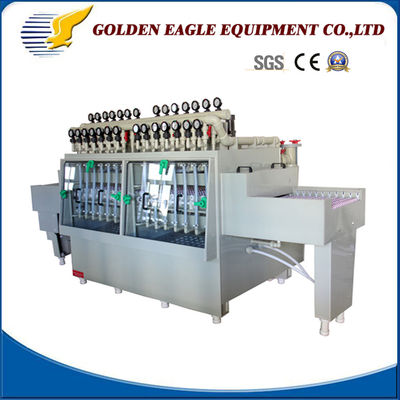

Thin Plate PCB Etching Machine GE-SK2 for Small Models Plate Thickness 0.05mm -3.2mm

Large Image : Thin Plate PCB Etching Machine GE-SK2 for Small Models Plate Thickness 0.05mm -3.2mm

Product Details:

Contact Now

Thin Plate PCB Etching Machine GE-SK2 for Small Models Plate Thickness 0.05mm -3.2mm

Description

Model NO.:	GE-SK2	Etching Type:	Double Spray
Precision:	Precision	Condition:	New
Working Width:	650mm (Can Be Order)	Tolerance:	0.02mm
Plate Thickness:	0.05mm ~3.2mm	Application:	Single Board, Double Board, Multi-Layer Board
Transport Package:	Standard Export Wooden Case	Specification:	CE
Trademark:	Golden Eagle	Origin:	Beijing, China (Mainland)
HS Code:	84862090	Supply Ability:	20sets/Month
After-sales Service:	After 1year,Once Some Components Are Broke	Warranty:	After 1year,Once Some Components Are Broke
Type:	Electrical Etching Machine	Object:	Metal
Usage:	Marking & Lettering, Corrosion & Hollowed-out	Certification:	CE
Samples:	US$ 500/Piece 1 Piece(Min.Order) \| Request Sample

PCB Etching Machine/ PCB machine

Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)

PCB Etching Machines / Circuit Board Making Machine

Presicion Etching /Stripping Production Line
Specification introduction
Economy configuration	15mm PP plate & Stainless Steel Shaft
Field dimension	12500mm(L)1650mm(W)1700mm(H)
Conveyor	Transact metal panel thickness	0.5~5MM
	Conveyor height	900MM (+/-25mm)
	Conveyor width	650MM
Power	Voltage/phase/frequency	380V,3Phase,50Hz,
	Control box	Control Button Panel
	Power consumption	≈46.5KW(include heater)
Water consumption	city water consumption	0.5Ton/Hour
	DI water consumption	--------
Pipe diameter	City water flow pipe diameter	DN32
	Waste water drainpipe diameter	DN40
	Exhaust emission pipe diameter	160mm
Transportation	Operation speed	0.5-5 M/MIN (adjust)
	Transmission wheel	Rubber Wheel
panel space		2"
Conveyor work flow		From L to R

Process:

Load (450mm) ---Etching 1, 2 (2000mm)--- Pressure rinse (1000mm) ---Checking(300mm)--- Stripping(2000mm) ----Pressure Rinse(1500mm)---- Cold dry(500mm)----Hot dry (1000mm)-----Unload (450mm)

PCB Etching Machines / Circuit Board Making Machine, iunlcuding etching and stripping process. It used for double-sided board or multi layer PCB or thin copper etching uses with high precision.

PCB Etching Machine (smalll model) (GE-SK2)
