Sk12 Golden Eagle PCB Assembly Etching Machine with Conveyor Speed of 0.5-6m/Min

Certification
China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

Sk12 Golden Eagle PCB Assembly Etching Machine with Conveyor Speed of 0.5-6m/Min

Sk12 Golden Eagle PCB Assembly Etching Machine with Conveyor Speed of 0.5-6m/Min

Description
Model NO.: SK-12 Etching Type: Double Spray
Precision: High Precision Condition: New
Working Width: 650mm (Can Be Order) Tolerance: 0.02mm
Plate Thickness: 0.05mm ~3.2mm Application: Single Board, Double Board, Multi-Layer Board
Model: Ge-Sk9 Power: 380V/50Hz/60Hz
Working Height: 850mm (+/50mm Adjust) Max Board Size: 500*500mm
Min Board Siz: 120*80mm Conveyor Speed: 0.5~6m/Min
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: Golden Eagle Origin: Beijing, China (Mainland)
HS Code: 84862090 Supply Ability: 20sets/Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 1year. After 1year,Once Some Components Are Broke
Type: Photochemical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE

SK12 Golden Eagle PCB Assembly Etching Machine

Product Parameters
Machine Model GE-SK12
Machine Power 108KW/380V/50HZ
Working Width 450mm
Working height 900mm±25mm
Working Temperature 37~45ºC
Etching Type Double sided etching strip swaying
Heating System Titanium tube heating
Etching Pump 7.5KW/380V/50Hz

Working Form
Spray type, horizontal track feeding
(Stepless speed regulation)
Machine Size 17600*1700*1700mm (L*W*H)
Machine Weight 6200kgs
Product Description

Technological process

Load(500mm) - Etch 1 (2000mm) - Etch 2 (2000mm) - Etch 3 (2000mm) - Etch 4 (2000mm) - Etch 5 (2000mm) - Etch 6 (2000mm) - Clean (1500mm) - Unload (500mm)


Equipment description:
It adopts continuous mode and automatically cleans after etching. Materials used for the unit: PP high-quality engineering plastic and carbon steel plate.
Processing workpiece size: 650mm (maximum width); fifty × 50mm (minimum); 0.1~5.0mm (thickness) conveying speed range: 0.5~6.0m/min; Adjustable speed [preset working speed: 2.5 meters/minute] Transmission shaft diameter: 14mm
Roller diameter: 40MM

Detailed Photos

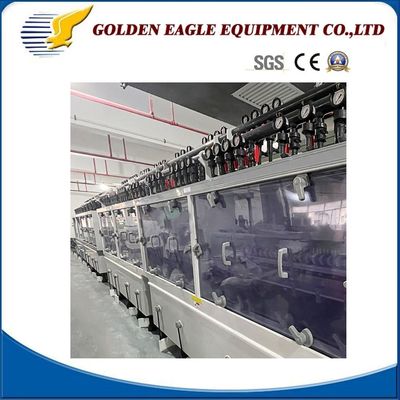

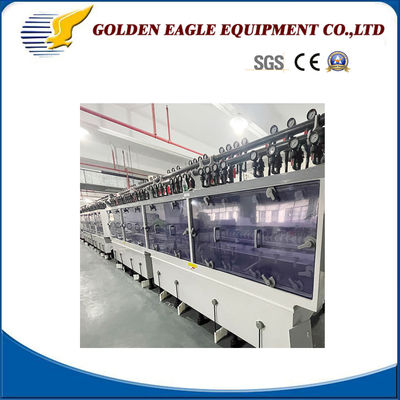

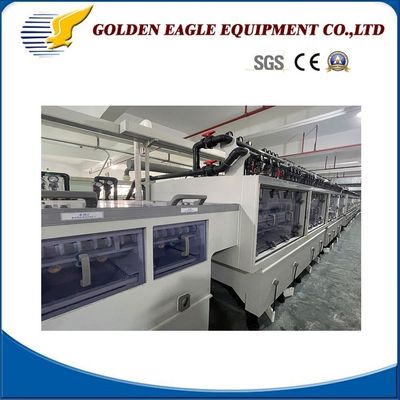

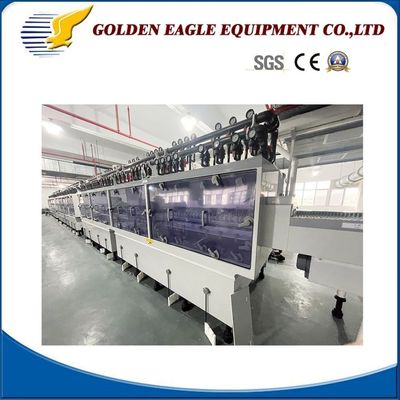

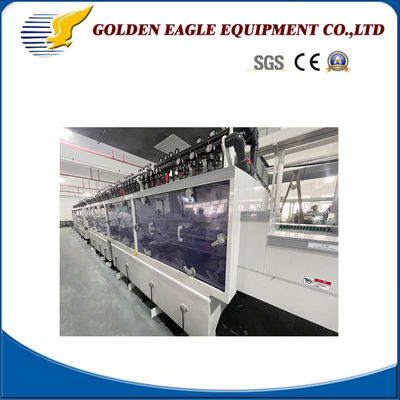

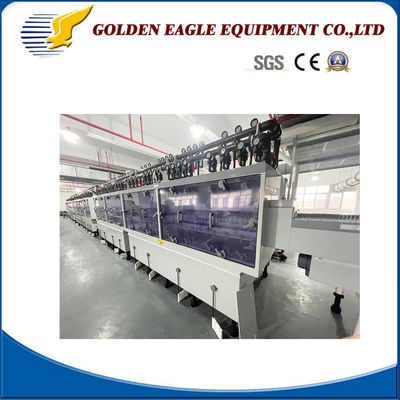

Sk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching Machine

Certifications

Sk12 Golden Eagle PCB Assembly Etching Machine

FAQ


1.Q:Are you trading company or a factory ?
   A: We are manufactory and We have import and export License .
2.Q:Where is your factory ?How Can I visit there?
   A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
   A: we are honores to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
   A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.
5.Q:Why us ?
   A: 1.  20 years machine manufacture experiences !
       2.  More than 10 years good credit supplier on Made-in-China
       3.  satisfaction or we'll refund or rerun-your choice
       4.  Etching technology can be provided for free to our customer by our well-trained and professional  engineers and staffs.



Packaging & Shipping

Sk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching Machine
