Golden Eagle Ge-Sk9 PCB Etching Machine The Perfect Fit for Your Production Needs

Certification
China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

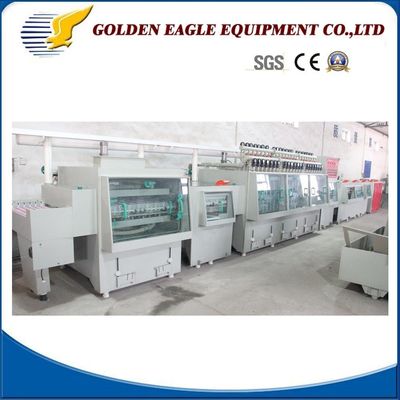

Golden Eagle Ge-Sk9 PCB Etching Machine The Perfect Fit for Your Production Needs

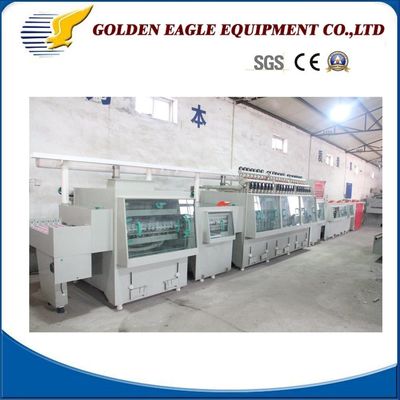

Golden Eagle Ge-Sk9 PCB Etching Machine The Perfect Fit for Your Production Needs

Description
Model NO.: GE-SK9 Etching Type: Double Spray
Precision: Precision Condition: New
Working Width: 650mm (Can Be Order) Tolerance: 0.02mm
Plate Thickness: 0.05mm ~3.2mm Application: Single Board, Double Board, Multi-Layer Board
Model: Ge-Sk9 Power: 380V/50Hz/60Hz
Working Height: 850mm (+/50mm Adjust) Max Board Size: 500*500mm
Min Board Siz: 120*80mm Conveyor Speed: 0.5~6m/Min
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: Golden Eagle Origin: Beijing, China (Mainland)
HS Code: 84862090 Supply Ability: 20sets/Month
After-sales Service: After 1year,Once Some Components Are Broke Warranty: After 1year,Once Some Components Are Broke
Type: Photochemical Etching Machine Object: Metal
Usage: Marking & Lettering, Corrosion & Hollowed-out Certification: CE

Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)

Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)


PCB Etching Machines / Circuit Board Making Machine

                          Presicion Etching /Stripping Production Line
Specification introduction
Economy configuration 15mm PP plate & Stainless Steel Shaft
Field dimension 12500mm(L)*1650mm(W)*1700mm(H)
Conveyor Transact metal panel thickness 0.5~5MM
  Conveyor height 900MM (+/-25mm)
  Conveyor width 650MM
Power Voltage/phase/frequency 380V,3Phase,50Hz,
  Control box Control Button Panel
  Power consumption 46.5KW(include heater)
Water consumption city water consumption 0.5Ton/Hour
  DI water consumption --------

Pipe diameter
City water flow pipe diameter DN32
  Waste water drainpipe diameter DN40
  Exhaust emission pipe diameter 160mm
Transportation Operation speed 0.5-5 M/MIN (adjust)
  Transmission wheel Rubber Wheel
panel space 2"
 Conveyor work flow From L to R
Product Description

Process:

Load (450mm) ---Etching 1, 2 (2000mm)--- Pressure rinse (1000mm) ---Checking(300mm)--- Stripping(2000mm) ----Pressure Rinse(1500mm)---- Cold dry(500mm)----Hot dry (1000mm)-----Unload (450mm)

PCB Etching Machines / Circuit Board Making Machine, iunlcuding etching and stripping process. It used for double-sided board or multi layer PCB or thin copper etching uses with high precision.
Detailed Photos

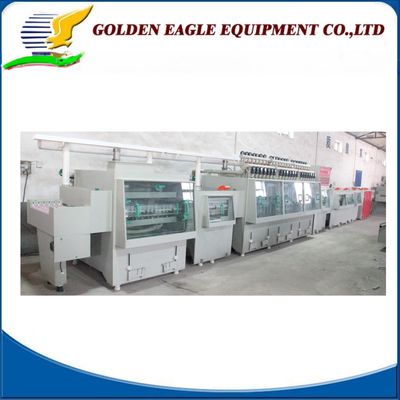

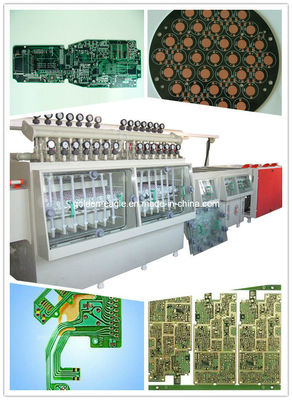

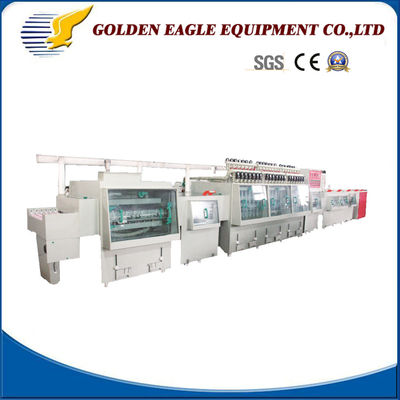

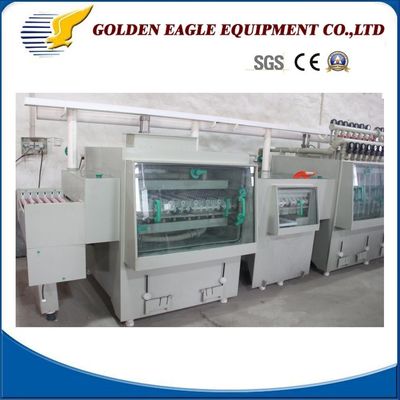

Golden Eagle Ge-Sk9 PCB Etching MachineGolden Eagle Ge-Sk9 PCB Etching MachineGolden Eagle Ge-Sk9 PCB Etching MachineGolden Eagle Ge-Sk9 PCB Etching Machine

Certifications

Golden Eagle Ge-Sk9 PCB Etching Machine

Packaging & Shipping

Golden Eagle Ge-Sk9 PCB Etching MachineGolden Eagle Ge-Sk9 PCB Etching Machine
