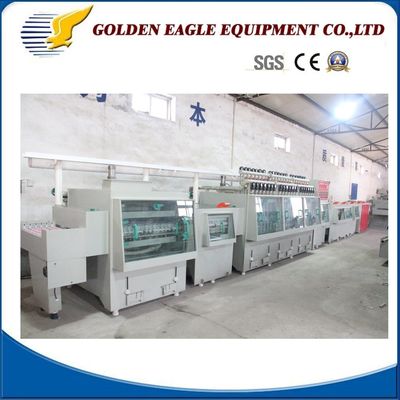

Electrical Etching Machine Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine

Electrical Etching Machine Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine

Description
Model NO.: GE-SK9 Etching Type: Double Spray
Precision: Precision Condition: New
Working Width: 650mm (Can Be Order) Tolerance: 0.02mm
Plate Thickness: 0.05mm ~3.2mm Application: Single Board, Double Board, Multi-Layer Board
Etching System: Double Spray With Oscillate System Workpiece Thickness: 0.2~3.2mm
Working Temperature: 35~55 Conveyor Speed: 0.5~6m/Min
Heater/Cooling Pipe: Titanium Pipe Machine Dimension: 12500*1700*1850mm
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: Golden Eagle Origin: Beijing, China (Mainland)
HS Code: 84862090 Supply Ability: 20sets/Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 1year. After 1year,Once Some Components Are Broke
Type: Electrical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE

Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)


                          Presicion Etching /Stripping Production Line
Specification introduction
Economy configuration 15mm PP plate & Stainless Steel Shaft
Field dimension 12500mm(L)*1650mm(W)*1700mm(H)
Conveyor Transact metal panel thickness 0.5~5MM
  Conveyor height 900MM (+/-25mm)
  Conveyor width 650MM
Power Voltage/phase/frequency 380V,3Phase,50Hz,
  Control box Control Button Panel
  Power consumption 46.5KW(include heater)
Water consumption city water consumption 0.5Ton/Hour
  DI water consumption --------

Pipe diameter
City water flow pipe diameter DN32
  Waste water drainpipe diameter DN40
  Exhaust emission pipe diameter 160mm
Transportation Operation speed 0.5-5 M/MIN (adjust)
  Transmission wheel Rubber Wheel
panel space 2"
 Conveyor work flow From L to R
Product Description

Process:

Load (450mm) ---Etching 1, 2 (2000mm)--- Pressure rinse (1000mm) ---Checking(300mm)--- Stripping(2000mm) ----Pressure Rinse(1500mm)---- Cold dry(500mm)----Hot dry (1000mm)-----Unload (450mm)

PCB Etching Machines / Circuit Board Making Machine, iunlcuding etching and stripping process. It used for double-sided board or multi layer PCB or thin copper etching uses with high precision.
Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine From China

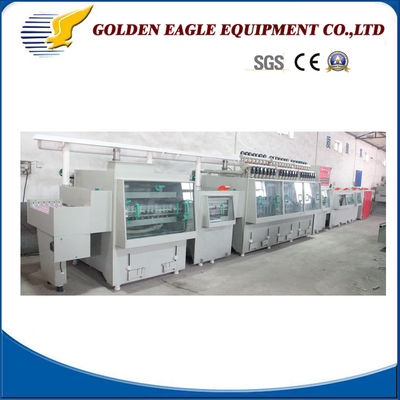

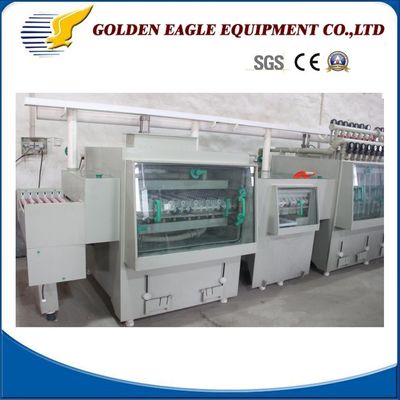

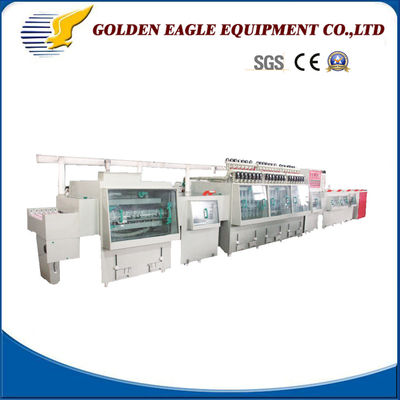

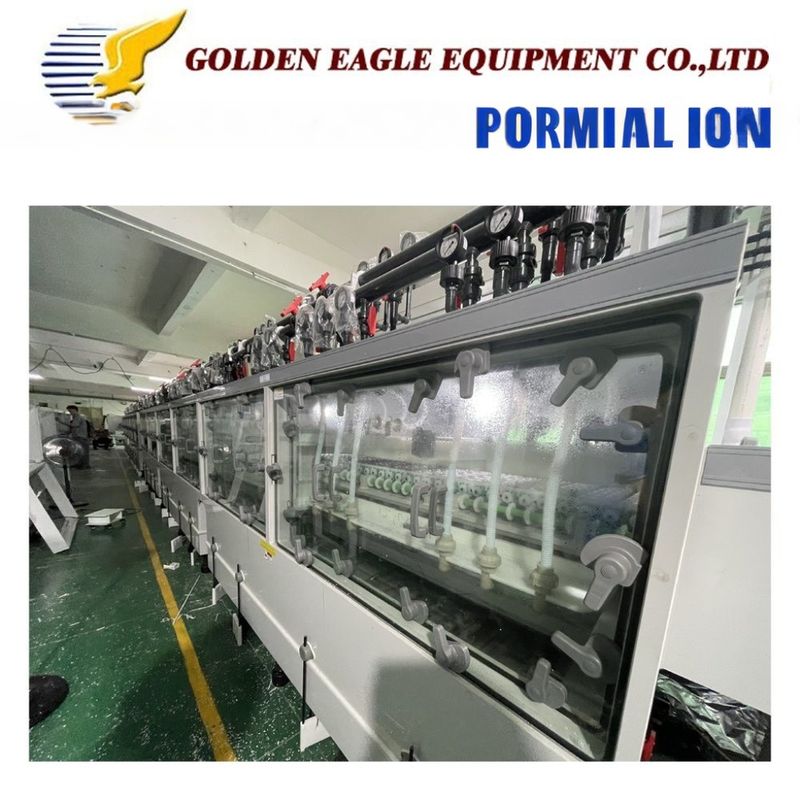

Detailed Photos

Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine From China
Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine From China
Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine From ChinaGe-Sk9 PCB Ferric Chloride Photochemical Etching Machine From China

Certifications

Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine From China

FAQ



1.Q:Are you trading company or a factory ?

   A: We are manufactory and We have import and export License .

2.Q:Where is your factory ?How Can I visit there?

   A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.

3.Q:How can I get some samples ?

   A: we are honores to offer you samples,please contact us anytime !

4.Q: How does your factory do regarding quality control ?

   A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.

5.Q:Why us ?

   A: 1.  20 years machine manufacture experiences !

       2.  More than 10 years good credit supplier on Made-in-China

       3.  satisfaction or we'll refund or rerun-your choice

       4.  Etching technology can be provided for free to our customer by our well-trained and professional  engineers and staffs.

After Sales Service



After sales service:

1.Customized design is available.

2.Master operator training program for free.

3.Reasonable and  negotiable  price,short lead time.



Packaging & Shipping

Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine From China
Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine From China

Company Profile



Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.

Ge-Sk9 PCB Ferric Chloride Photochemical Etching Machine From China
