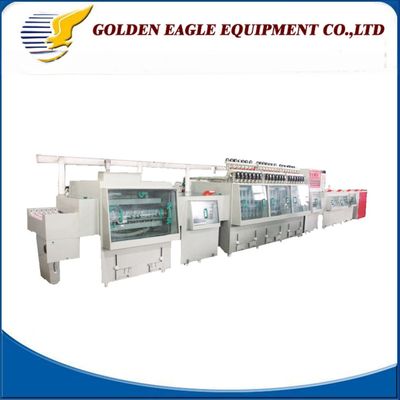

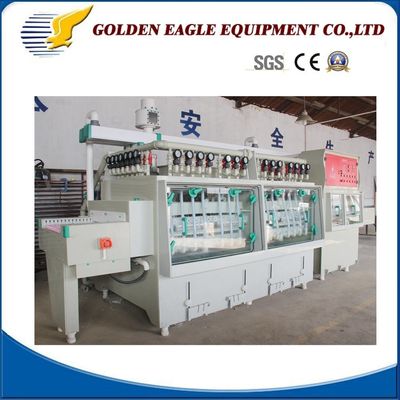

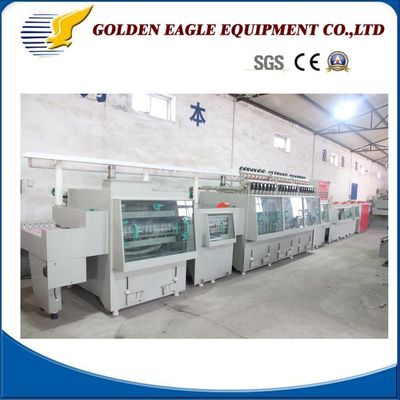

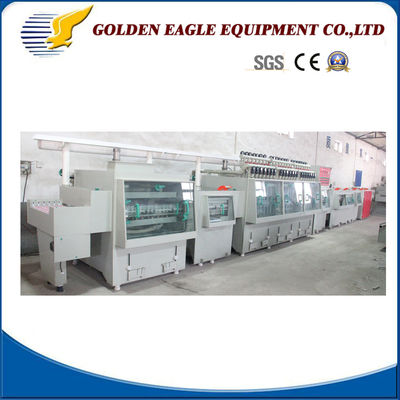

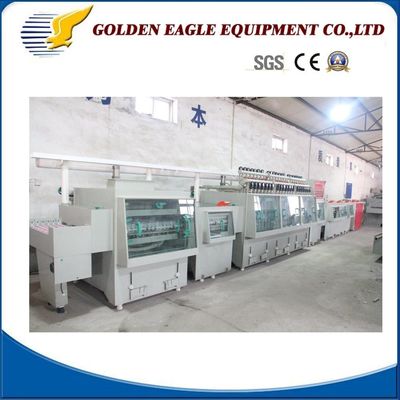

High Precision Ge-Sk9etching Machine for Corrosion Hollowed-out Circuit Board on Sale

Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)

Main technical parameter:

Model: GE-SK9
Power: 380V/50HZ/60HZ
Working width: 650mm
Working height: 850mm (+/50mm adjust)
Min / Max board size: 120*80mm / 500*500mm
Etching system: Double Spray with Oscillate system
Workpiece thickness: 0.2~3.2mm
Working Temperature: 35~55
Conveyor Speed: 0.5~6m/min
Heater/Cooling Pipe: Titanium Pipe
Machine dimension: 12500*1700*1850mm

Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material

Process flow: Load-- Etching1, 2 --Etching3, 4-- Pressure Washing-- City Water Washing --Checking Stripping1, 2-- Pressure Washing-- City Water Washing-- Blot Up --Cold & Hot Dry --Unload

Features: PCB etching machine/ PCB machine for double-sided or multi layer PCB or thin copper etching uses with high precision.
