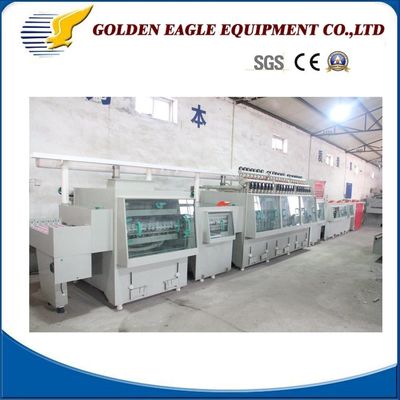

Double Spray Photochemical Etching Machine Ge-Sk9 for Versatile Etching Applications

Double Spray Photochemical Etching Machine Ge-Sk9 for Versatile Etching Applications

Description
Model NO.: GE-SK9 Etching Type: Double Spray
Precision: Precision Condition: New
Model: Ge-Sk9 Power: 380V/50Hz/60Hz
Working Width: 650mm Working Height: 850mm (+/50mm Adjust)
Max Board Size: 500*500mm Min Board Size: 120*80mm
Etching System: Double Spray With Oscillate System Workpiece Thickness: 0.2~3.2mm
Working Temperature: 35~55 Machine Dimension: 12500*1700*1850mm
Transport Package: Standard Export Wooden Case Specification: CE
Trademark: Golden Eagle Origin: Beijing, China (Mainland)
HS Code: 84862090 Supply Ability: 20sets/Month
After-sales Service: 1year. After 1year,Once Some Components Are Broke Warranty: 12month
Type: Electrical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE

Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)

Product Description

Main technical parameter:

Model: GE-SK9
Power: 380V/50HZ/60HZ
Working width: 650mm
Working height: 850mm (+/50mm adjust)
Min / Max board size: 120*80mm / 500*500mm
Etching system: Double Spray with Oscillate system
Workpiece thickness: 0.2~3.2mm
Working Temperature: 35~55
Conveyor Speed: 0.5~6m/min
Heater/Cooling Pipe: Titanium Pipe
Machine dimension: 12500*1700*1850mm

Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material

Process flow: Load-- Etching1, 2 --Etching3, 4-- Pressure Washing-- City Water Washing --Checking Stripping1, 2-- Pressure Washing-- City Water Washing-- Blot Up --Cold & Hot Dry --Unload

Features: PCB etching machine/ PCB machine for double-sided or multi layer PCB or thin copper etching uses with high precision.

Detailed Photos

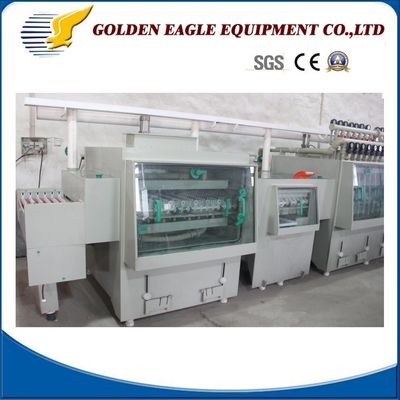

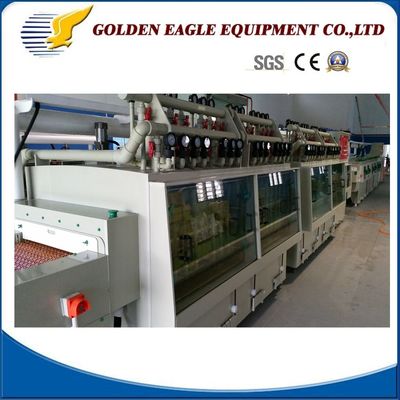

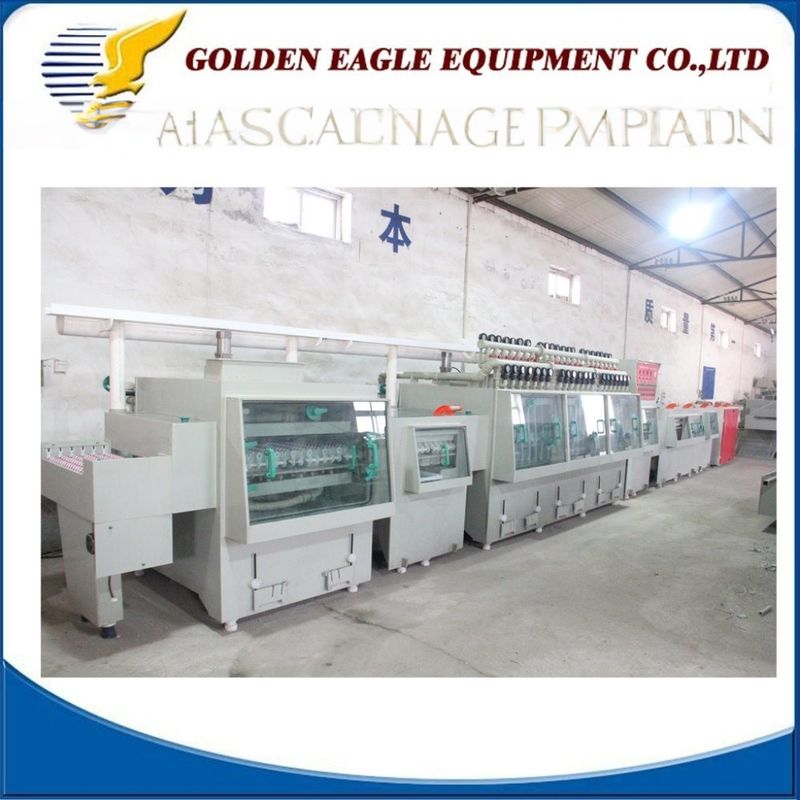

 Photochemical Etching Machine Ge-Sk9Photochemical Etching Machine Ge-Sk9

Packaging & Shipping

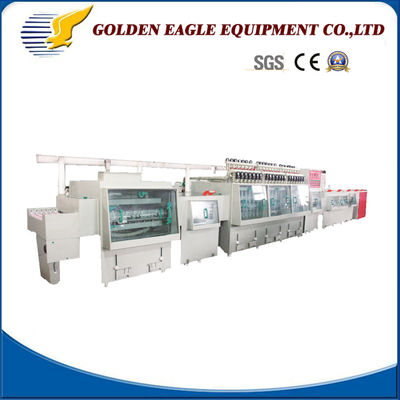

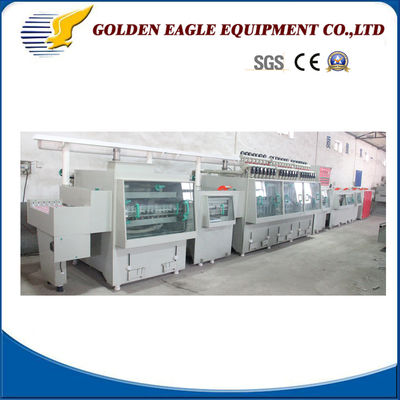

Photochemical Etching Machine Ge-Sk9 Photochemical Etching Machine Ge-Sk9

Certifications



Photochemical Etching Machine Ge-Sk9
