SMT Stencil Plate Etching Machine with Double Spray and Ferric Chloride Acid Solution

Certification
China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

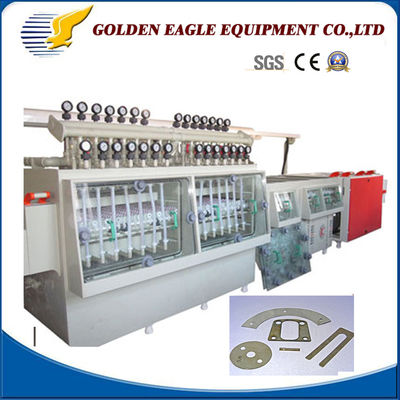

SMT Stencil Plate Etching Machine with Double Spray and Ferric Chloride Acid Solution

SMT Stencil Plate Etching Machine with Double Spray and Ferric Chloride Acid Solution

Description
Model NO.: GE-JM650 Object: Metal
Usage: Corrosion & Hollowed-out Etching Type: Double Spray
Precision: Precision Condition: New
Accuracy: +/- 0.02mm Wokring Width: 650mm (Can Be Order)
Acid Solution: Ferric Chloride Transport Package: Standard Export Wooden Case
Specification: CE Trademark: GOLDEN EAGLE
Origin: China HS Code: 8486209000
Supply Ability: 20sets/Month Package Size: 400.00cm * 165.00cm * 185.00cm
Package Gross Weight: 1400.000kg After-sales Service: After 1year,Once Some Components Are Broke
Warranty: After 1year,Once Some Components Are Broke Type: Photochemical Etching Machine
Samples: US$ 500/Piece 1 Piece(Min.Order) | Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Precision Etching Machine for SMT stencil plate, solder paste stencil plate/metal gaksets,metal washers

This High Precision PCB Etching Machine has high precision, can remove unnecessary copper foil, get exact design circuit line
Product Parameters



Auto Double Side Etching Machine
Power  16KW/380V/50HZ
Working width 650mm
Etching area Length:2000mm
Pump:4KW/set,2sets
Double Spraying & Oscillate
Pressure  control for every spray pipe
Heater: Titanium pipe,3KW/1groups
Cooling: Titanium pipe,1set
Working Temp:37~55ºC

Rinse area
Length: 500mm, 1parts
Pump:2.2KW/set,1sets
Double spraying
Machine Size 4500*1650*1700mm
Weight About 1000kgs
Product Description

Process:
Load (500mm)  Etching1,2 (2000mm)Pressure rinse1(500mm)→Unload (500mm)


Feature:

1. This double Precision etching machine is Photochemical machining equipment.
2. It can be used in etching metal materials such as copper, aluminum, stainless steel to process precison metal parts.
3. Double-sided, horizontal, conveyorized, spray etcher


Automatic Control System: Speed & Temperature; Etching Pressure; Double side filter system
  Precision Etching Machine for SMT Stencil Plate
After Sales Service



Service:
1. Customized.
2. Free training.
3. Reasonable and negotiable price, short lead time.

Detailed Photos

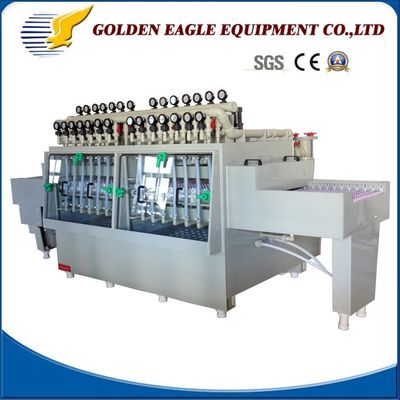

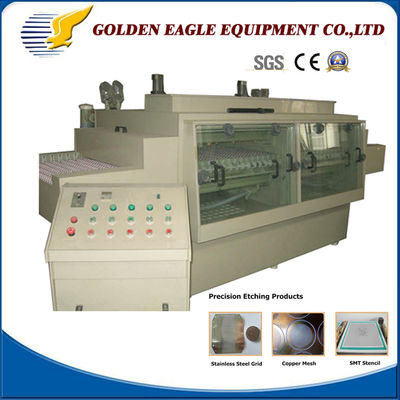

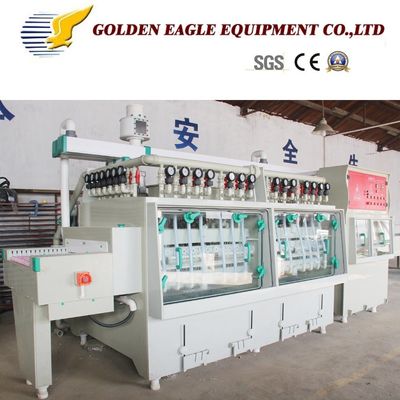

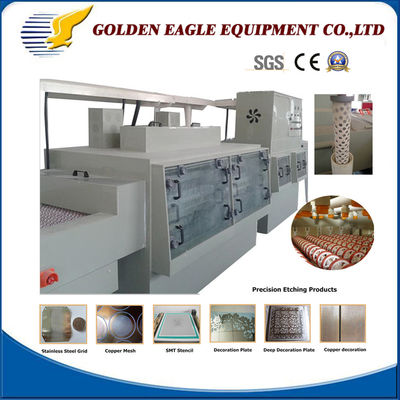

Precision Etching Machine for SMT Stencil Plate
Precision Etching Machine for SMT Stencil Plate
Precision Etching Machine for SMT Stencil Plate
Precision Etching Machine for SMT Stencil PlatePrecision Etching Machine for SMT Stencil Plate
Precision Etching Machine for SMT Stencil Plate


Certifications



Precision Etching Machine for SMT Stencil Plate
Packaging & Shipping

Precision Etching Machine for SMT Stencil Plate
Precision Etching Machine for SMT Stencil Plate





Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.

Precision Etching Machine for SMT Stencil Plate
