Precision Metal Shims Etching Machine with 0.02mm Tolerance and 650mm Etching Width

Precision Metal Shims Etching Machine with 0.02mm Tolerance and 650mm Etching Width

Description
Model NO.: JM650 Main Axle Rotational Speed: ≤30000rpm
Milling Cutter Diameter: 10mm Feeding Height: >300mm
Warranty: 12 Months Customized: Customized
Condition: New Etching Width: 650mm(Length Not Limit)
Tolerance: 0.02mm Machining Thickness: 0.05 To 1.50mm For Sst, 0.1 To 2mm For Cu
Control System: Temperature, Pressure, Swing, Mesh Filter Transport Package: Wooden Package
Specification: CE Trademark: Golden Eagle
Origin: Beijing, China (Mainland) HS Code: 84862090
Supply Ability: 20set/Month Package Size: 400.00cm * 165.00cm * 185.00cm
Package Gross Weight: 1400.000kg After-sales Service: After 1year,Once Some Components Are Broke
Carving Material: Metal Alloy Controlling Mode: Manual
Shipping Cost : About Shipping Cost And Estimated Delivery Time.  : Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Photochemical Etching Machine for Precision Metal Shims (JM650)



Product Parameters



Auto Double Side Etching Machine
Power  16KW/380V/50HZ
Working width 650mm
Etching area Length:2000mm
Pump:4KW/set,2sets
Double Spraying & Oscillate
Pressure  control for every spray pipe
Heater: Titanium pipe,3KW/1groups
Cooling: Titanium pipe,1set
Working Temp:37~55ºC

Rinse area
Length: 500mm, 1parts
Pump:2.2KW/set,1sets
Double spraying
Machine Size 4500*1650*1700mm
Weight About 1000kgs
Product Description

Process:
Load (500mm)  Etching1,2 (2000mm)Pressure rinse1(500mm)→Unload (500mm)


Feature:

1. This double Precision etching machine is Photochemical machining equipment.
2. It can be used in etching metal materials such as copper, aluminum, stainless steel to process precison metal parts.
3. Double-sided, horizontal, conveyorized, spray etcher


Automatic Control System: Speed & Temperature; Etching Pressure; Double side filter system
Photochemical Etching Machine for Precision Metal Shims/Etching

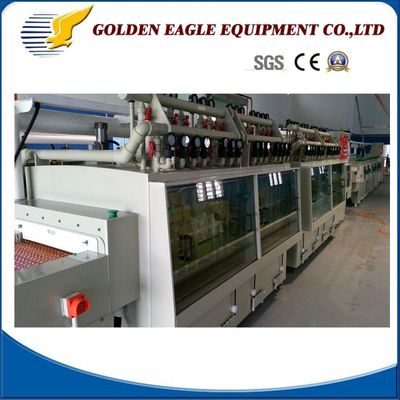

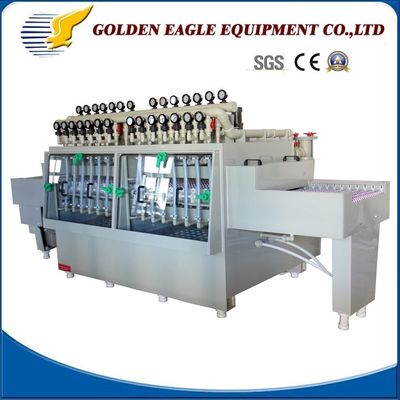

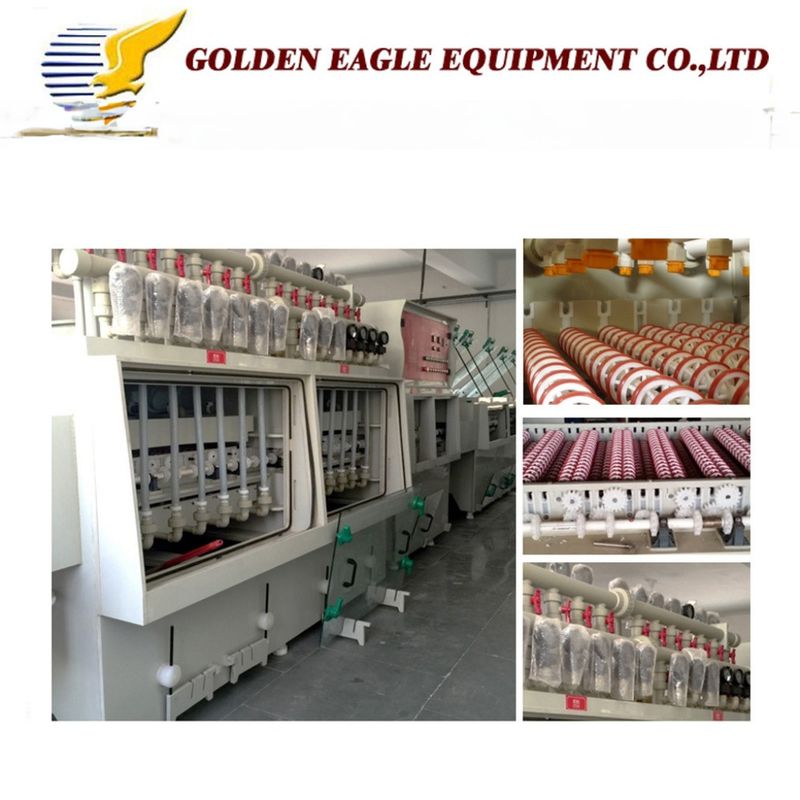

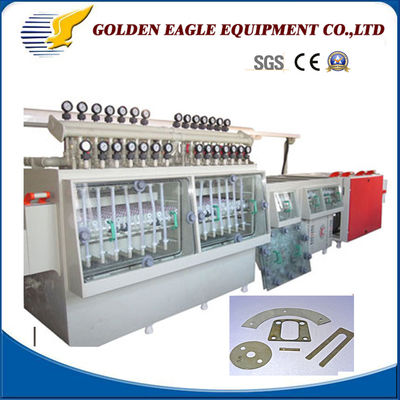

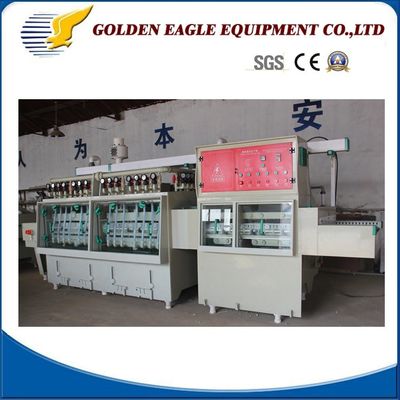

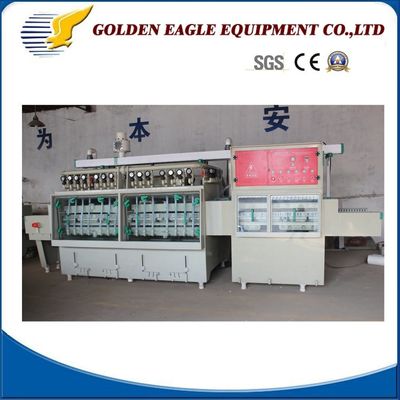

Detailed Photos

Photochemical Etching Machine for Precision Metal Shims/Etching

Photochemical Etching Machine for Precision Metal Shims/Etching
Photochemical Etching Machine for Precision Metal Shims/Etching
Photochemical Etching Machine for Precision Metal Shims/Etching
Photochemical Etching Machine for Precision Metal Shims/Etching

Photochemical Etching Machine for Precision Metal Shims/Etching


Certifications



Photochemical Etching Machine for Precision Metal Shims/Etching
Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.
Photochemical Etching Machine for Precision Metal Shims/Etching
