11.5kw/380V/50Hz High Precision PCB Etching Machine with 650mm*2000mm Etching Width

11.5kw/380V/50Hz High Precision PCB Etching Machine with 650mm*2000mm Etching Width

Description
Model NO.: GE-JM650 Etching Type: Double Spray
Precision: High Precision Condition: New
Power: 11.5kw/380V/50Hz Etching Width: 650mm*2000mm
Plate Size: 650mm(Width) * L (Not Limited) Plate Thickness: 0.02~1.0mm
Tolerance: 0.02mm Etching: Double Spraying And Ocsillate Nozzles (Swing Syst
Heater & Cooling: Titanium Material Temperature: 0 To 65°c (Adjust)
Outer Size: 3550 X 1650 X 1550mm Weight: 850kg
Transport Package: Wooden Case Specification: CE
Trademark: Golden Eagle Origin: Beijing, China
HS Code: 84862090 Supply Ability: 15 Sets/Month
After-sales Service: After 1year,Once Some Components Are Broke Warranty: After 1year,Once Some Components Are Broke
Type: Photochemical Etching Machine Object: Metal
Usage: Corrosion & Hollowed-out Certification: CE
Samples: US$ 500/Piece 1 Piece(Min.Order) | Request Sample

High Precision PCB Etching Machine


Precision Photo Etching Machine for metal gaksets,metal washers

This High Precision PCB Etching Machine has high precision, can remove unnecessary copper foil, get exact design circuit line

Product Parameters



Auto Double Side Etching Machine
Power  16KW/380V/50HZ
Working width 650mm
Etching area Length:2000mm
Pump:4KW/set,2sets
Double Spraying & Oscillate
Pressure  control for every spray pipe
Heater: Titanium pipe,3KW/1groups
Cooling: Titanium pipe,1set
Working Temp:37~55ºC

Rinse area
Length: 500mm, 1parts
Pump:2.2KW/set,1sets
Double spraying
Machine Size 4500*1650*1700mm
Weight About 1000kgs
Product Description

Process:
Load (500mm)  Etching1,2 (2000mm)Pressure rinse1(500mm)→Unload (500mm)


Feature:

1. This double Precision etching machine is Photochemical machining equipment.
2. It can be used in etching metal materials such as copper, aluminum, stainless steel to process precison metal parts.
3. Double-sided, horizontal, conveyorized, spray etcher


Automatic Control System: Speed & Temperature; Etching Pressure; Double side filter system

After Sales Service



Service:
1. Customized.
2. Free training.
3. Reasonable and negotiable price, short lead time.

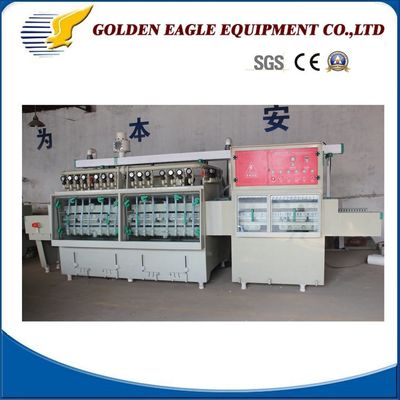

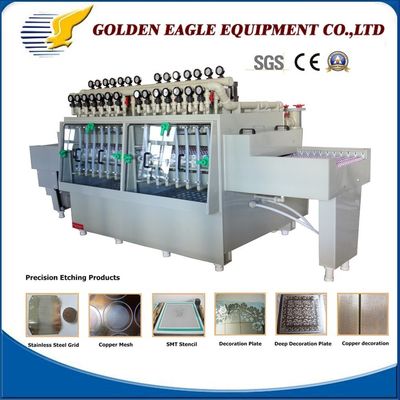

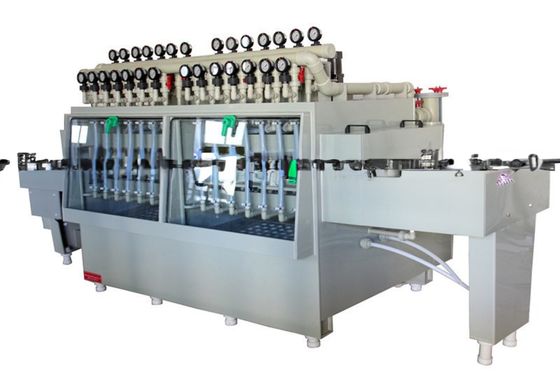

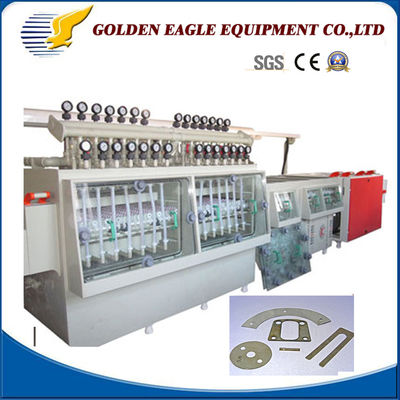

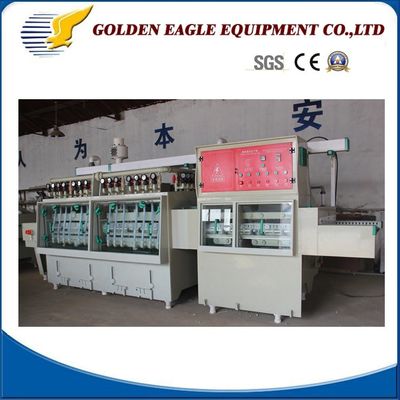

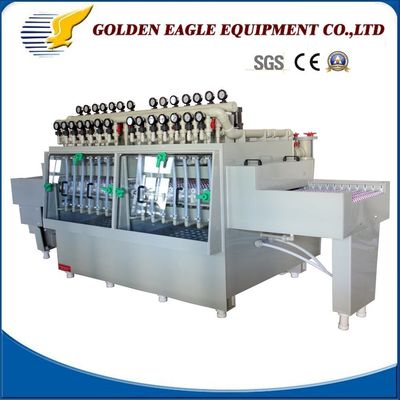

Detailed Photos

High Precision PCB Etching MachineHigh Precision PCB Etching MachineHigh Precision PCB Etching MachineHigh Precision PCB Etching MachineHigh Precision PCB Etching MachineHigh Precision PCB Etching MachineHigh Precision PCB Etching Machine
