Product Details:
|
| Model NO.: | GE-JM650 | Etching Type: | Double Spray |
|---|---|---|---|
| Precision: | Precision | Condition: | New |
| Model: | Ge-Jm650 | Accuracy: | +/- 0.02mm |
| Wokring Width: | 650mm (Can Be Order) | Acid Solution: | Ferric Chloride |
| Power: | 11.5kw/380V | Temperature: | 0 To 65° C |
| Heater: | 3kw, Titanium Pipe | Cooling System: | PE Cooling System |
| Machining Thickness: | 0.05 To 2mm | Out Size: | 3550*1650*1550mm |
| Transport Package: | Standard Export Wooden Case | Specification: | CE |
| Trademark: | GOLDEN EAGLE | Origin: | China |
| HS Code: | 84862090 | Supply Ability: | 20sets/Month |
| After-sales Service: | After 1year,Once Some Components Are Broke | Warranty: | After 1year,Once Some Components Are Broke |
| Type: | Photochemical Etching Machine | Object: | Metal |
| Usage: | Corrosion & Hollowed-out | Certification: | CE |
| Samples: | US$ 500/Piece 1 Piece(Min.Order) | Request Sample |

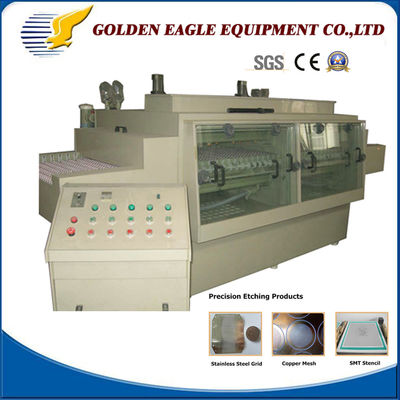

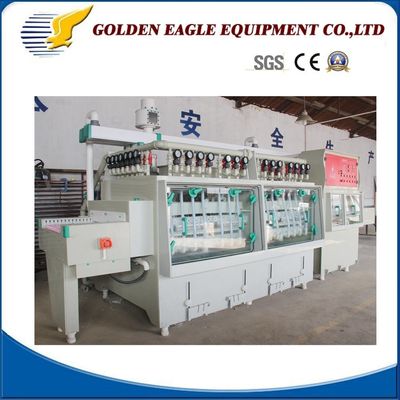

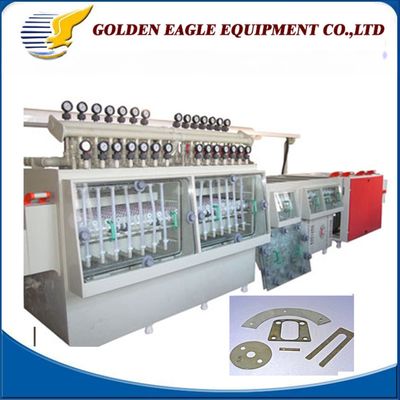

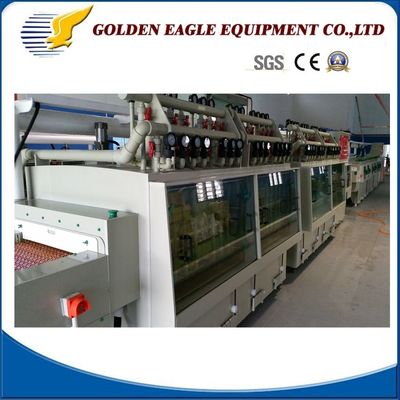

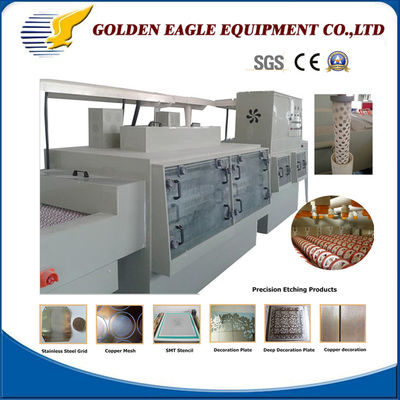

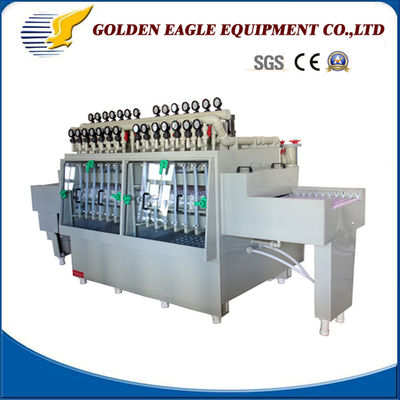

| Auto Double Side Etching Machine | |
| Power | 16KW/380V/50HZ |
| Working width | 650mm |
| Etching area | Length:2000mm |
| Pump:4KW/set,2sets | |
| Double Spraying & Oscillate Pressure control for every spray pipe | |
| Heater: Titanium pipe,3KW/1groups | |
| Cooling: Titanium pipe,1set | |
| Working Temp:37~55ºC | |
Rinse area | Length: 500mm, 1parts |
| Pump:2.2KW/set,1sets | |
| Double spraying | |
| Machine Size | 4500*1650*1700mm |
| Weight | About 1000kgs |
Process:
Load (500mm) → Etching1,2 (2000mm)→Pressure rinse1(500mm)→Unload (500mm)
