2023 Production Rigid Circuit Board Lead-Free HASL Machine with 250-300 Pieces /Hour

China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

2023 Production Rigid Circuit Board Lead-Free HASL Machine with 250-300 Pieces /Hour

2023 Production Rigid Circuit Board Lead-Free HASL Machine with 250-300 Pieces /Hour

Model NO.: GE-PX610 Coating: Tin
Method Type: Automatic Condition: New
Max Board Size: 610× 540× 6mm Produce Capacity: 250~300 Pieces /Hour
Tin Tank Capacity: 200kg Bleed Pressure: 8kg
Air Knife Pressure: 5/C(Adjust) Working Temperature: 230-280(Adjust)
Hot Wind Temperature: 150-260(Adjust) DIP Tin Temperature: 0-20 Second(Adjust)
Trim Temperature: 0-20 Second(Adjust) Machine Size: 1550× 800× 2100mm
Dielectric: Fr-4 Material: Fiberglass Epoxy
Brand: Golden Eagle Transport Package: Standard Export Wooden Case
Specification: CE Trademark: GOLDEN EAGLE
Origin: China HS Code: 84862090
Supply Ability: 20sets/Month Package Size: 200.00cm * 150.00cm * 190.00cm
Package Gross Weight: 1000.000kg After-sales Service: Once Some Components Are Broke
Warranty: 1year Type: Rigid Circuit Board
Shipping Cost : About Shipping Cost And Estimated Delivery Time.  : Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Lead-free HASL machines/Hot Air Solder Leveling
Hot Air Leveling Machine/ Solder Tin Coating Machine-PCB equipment
Product Description


1, Automatic temperature control system, automatic display;
2, Automatic pressure control system, not get fixed pressure, each work can't start;
3, The adjusting range of rising/falling speed and pressure
Is big, high efficiency;
4, Substrate Tin coating is uniform;
5, Install emergency stop button.

Model: GE-PX610
Max board Size: 610*540*6mm
Produce Capacity: 250~300 pieces /hour
Tin Tank Capacity: 200kg
Bleed Pressue: 8kg
Air knife Pressure: 5kg/square centimeter(adjustable)
Working temperature: 230-280centigrade(adjustable)
Hot Wind Temperature: 150-260centigrade(adjustable)
DIP Tin Temperature: 0-20 second(adjustable)
Trim Temperature: 0-20 second(adjustable)
Power Supply: A. C238V. 50Hz/36KW
Product Parameters


Machine Name:Hot Air Leveling Machine(Lead-free)
Max board Size:   610×540mm
Min board Size: 150*200mm
Plate thickness: 0.8-3.2mm
Produce Capacity 300~400 pieces /hour
Tin Tank Capacity    500kg
bleed Pressure   8kg
Air knife Pressure 5KG/CM2(adjust)
Working temperature 230-280ºC(adjust)
Hot Wind Temperature 150-260cºC(adjust)
Dip Tin Temperature 0-20 second(adjust)
Trim Temperature   0-20 second(adjust)
Power Supply             A.C380V.50HZ/65KW
Machine Size               1960×1460×2850mm
Machine Structure

1, Machine body and Tin tank is made by Japan Cr18Ne9Ti stainless steel material.
2, Air knife: 2 units for up and down; With non-scaling steel, resist high temperature;
3, Heater: Silicon Carbide far infrared platen heater, 8 pieces, 2.5KW/Piece;
4, Agitate pump: Stainless steel material, 1 set;
5, High quality of all the electrical apparatus element, long service life.

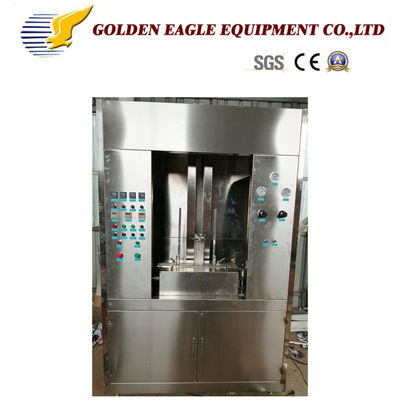

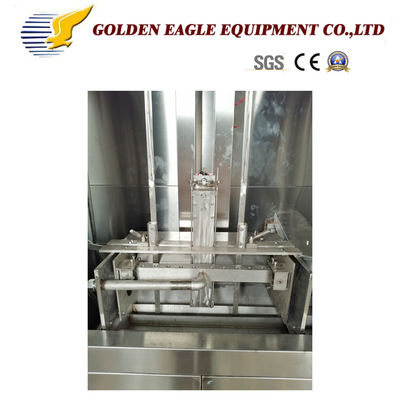

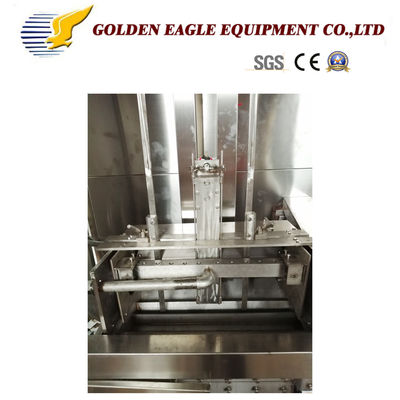

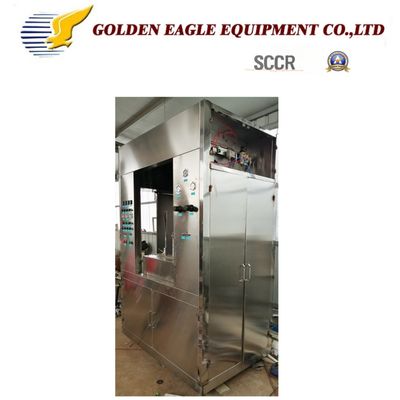

Detailed Photos

2023new Machine Lead-Free HASL Machines

2023new Machine Lead-Free HASL Machines2023new Machine Lead-Free HASL Machines2023new Machine Lead-Free HASL Machines


1.Q:Are you trading company or a factory ?

   A: We are manufactory and We have import and export License .

2.Q:Where is your factory ?How Can I visit there?

   A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.

3.Q:How can I get some samples ?

   A: we are honores to offer you samples,please contact us anytime !

4.Q: How does your factory do regarding quality control ?

   A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.

5.Q:Why us ?

   A: 1.  20 years machine manufacture experiences !

       2.  More than 10 years good credit supplier on Made-in-China

       3.  satisfaction or we'll refund or rerun-your choice

       4.  Etching technology can be provided for free to our customer by our well-trained and professional  engineers and staffs.

After Sales Service

1.Customized design is available.

2.Master operator training program for free.

3.Reasonable and  negotiable  price,short lead time.

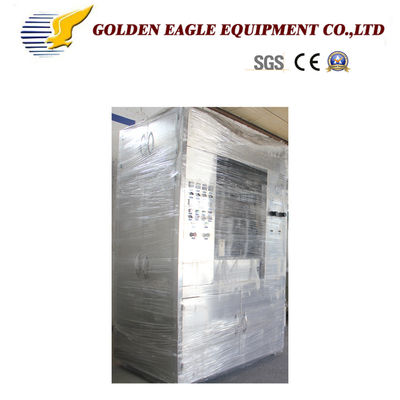

Packaging & Shipping

2023new Machine Lead-Free HASL Machines

2023new Machine Lead-Free HASL Machines

Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.
2023new Machine Lead-Free HASL Machines
