Metal Object Laboratory PCB Electrical Etching Machine for Manufacturing Line

China Beijing Golden Eagle Technology Development Co., Ltd. certification
I'm Online Chat Now

Metal Object Laboratory PCB Electrical Etching Machine for Manufacturing Line

Metal Object Laboratory PCB Electrical Etching Machine for Manufacturing Line

Model NO.: GE-ZFS200 Object: Metal
Usage: Corrosion & Hollowed-out Etching Type: Double Spray
Precision: Precision Condition: New
Transport Package: Wooden Case Specification: Customized
Trademark: GE Origin: China
HS Code: 8486209000 Supply Ability: 1000sets/Year
Package Size: 65.00cm * 50.00cm * 65.00cm Package Gross Weight: 30.000kg
After-sales Service: Once Some Components Are Broke Warranty: 1year
Type: Electrical Etching Machine Samples: US$ 500/Piece 1 Piece(Min.Order) |
Shipping Cost : About Shipping Cost And Estimated Delivery Time.  : Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Laboratory PCB etching machine
Product Parameters

 Technical parameters
Boundary dimension: 510mm × 210mm × 550 mm;
Maximum board size: 200mm × 300mm;
Power supply voltage: AC220V/50Hz;
Rated power: 600W;
Maximum volume: 16L;
Weight; 14kg;
Maximum air volume: 50L/min.

Boundary dimension 510mm × 210mm × 550 mm
Maximum board size 200mm × 300mm
Power supply voltage AC220V/50Hz
Rated power 600W

Maximum volume
Weight 14kg;
Maximum air volume

Note:We may customized according to customer needs.
Product Description

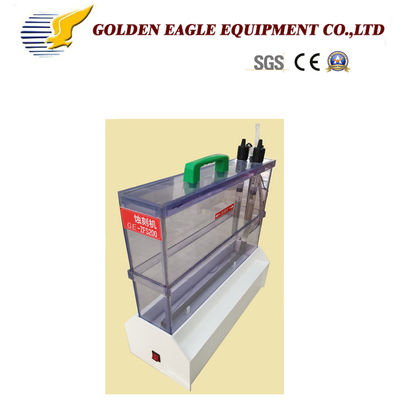

The GE-ZFS200 experimental PCB etching machine adopts a single groove structure, and the groove is made of transparent PVC board, with air blowing and glass heating functions, which can meet the requirements of  200mm×300mm PCB board manufacturing  size . The appearance design is beautiful and can be used as a simple equipment for the corrosion process of circuit boards.

Laboratory PCB Etching Machine

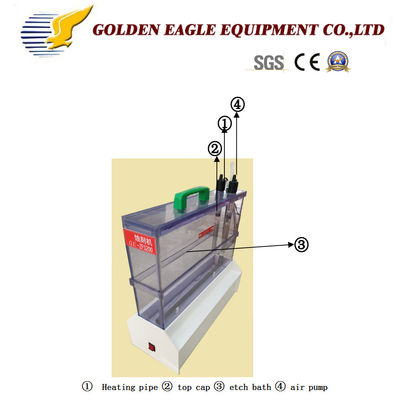

Function Description
1,Heating tube: Heating the corrosive solution, and the heating temperature can be set.
2,Top cover: prevents liquid contamination.
3,Corrosion tank: Process work tank.
4, Air pump: Blowing air.

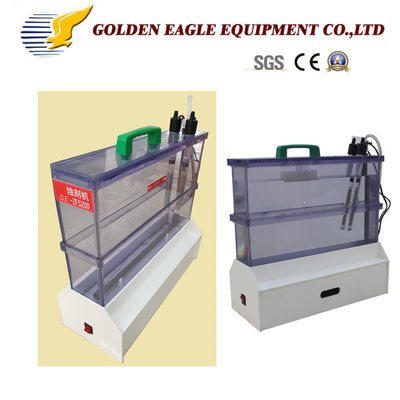

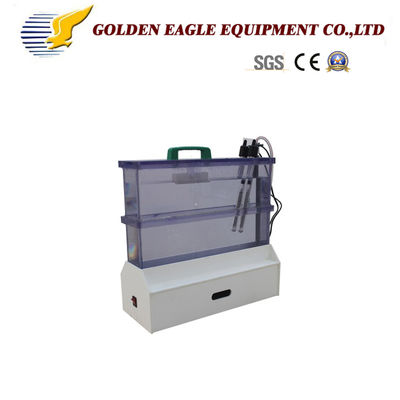

Detailed Photos

Laboratory PCB Etching MachineLaboratory PCB Etching MachineLaboratory PCB Etching Machine


Laboratory PCB Etching Machine


1.Q:Are you trading company or a factory ?

   A: We are manufactory and We have import and export License .

2.Q:Where is your factory ?How Can I visit there?

   A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.

3.Q:How can I get some samples ?

   A: we are honores to offer you samples,please contact us anytime !

4.Q: How does your factory do regarding quality control ?

   A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.

5.Q:Why us ?

   A: 1.  20 years machine manufacture experiences !

       2.  More than 10 years good credit supplier on Made-in-China

       3.  satisfaction or we'll refund or rerun-your choice

       4.  Etching technology can be provided for free to our customer by our well-trained and professional  engineers and staffs.

After Sales Service


After sales service:

1.Customized design is available.

2.Master operator training program for free.

3.Reasonable and  negotiable  price,short lead time.


Packaging & Shipping

Laboratory PCB Etching Machine


Company Profile

Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.

We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.

In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.

Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.

Laboratory PCB Etching Machine
